Fully Automatic Flower Sleeves Making Machine

Model: SWFFA-V Flower Sleeves Bag Making Machines · Converting Platform 20-110 strokes/min

02 Film Bag Line

Cycle Speed 20-110 strokes/min

Drive System Multi-Axis Servo

Quality Test 100% FAT

Warranty

12 Months Direct Factory Warranty

Lead Time

30 - 45 Days

Standards

CE & ISO 9001

Converting Machine Lineup

Fully Automatic Flower Sleeves Making Machine

Model: SWFFA-V Flower Sleeves Bag Making Machines

Our fully automatic flower sleeve bag making machine processes weld & cut simultaneously against silicon belt, and distances are adjustable.

Max Design Speed 20-110 strokes/min

Applicable Materials BOPP, CPP, Cast Polypropylene (CPP), High-Clarity Films

Primary Web Dimension Width: 75mm-660mm | Length: 75mm-660mm

Drive & Tension Control Thickness: 0.012mm-0.2mm

Request Technical Proposal & Layout Email Engineering

Direct Channels:

CE Certified

ISO 9001

System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the SWFFA-V.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Fully Automatic Flower Sleeves Making Machine.

Inquire About Custom Tooling

Zoom

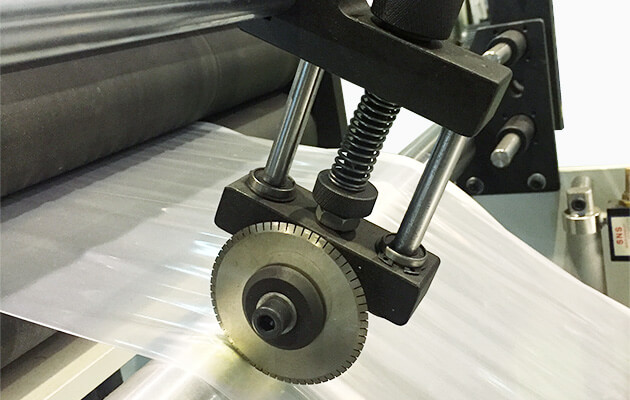

Continuous perforation device

Circular perforation blade are fixed and perforated line parallel to material feed direction.

Add to Proposal

Zoom

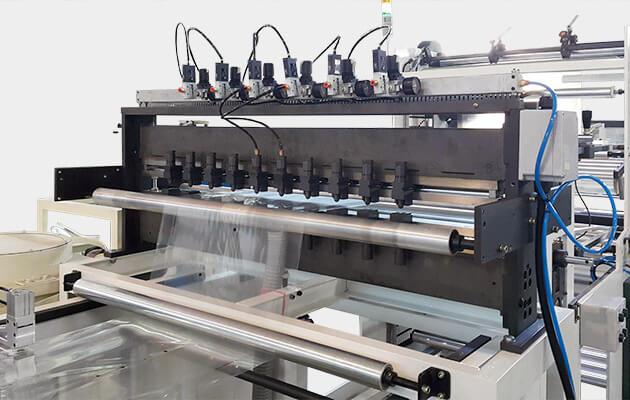

Inline Continuous hole punch (CP1000)

6 points controlled pneumatic punch set can change hole punches position and pattern easily by managing the punch timing seperately for every control point, continuous process.

Add to Proposal

Modular Station

Saw-type hole punch

Saw type punch for punching hole on thick-gauge film

Zoom

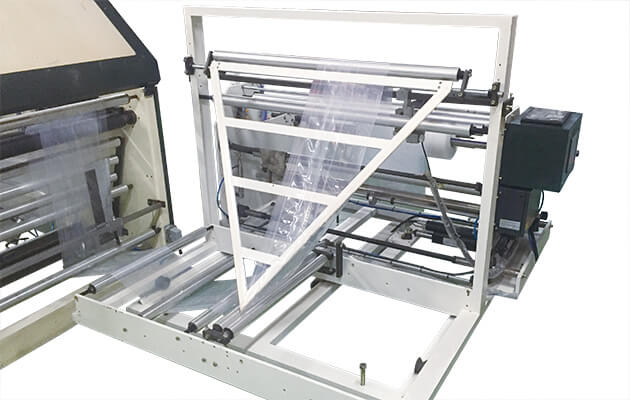

Triangle folding device

Sheet film is folded in half by passing triangular frame and pinch.

Add to Proposal

Zoom

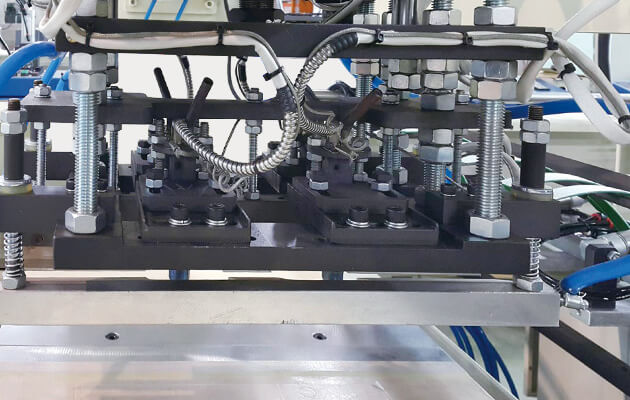

Hot-cut round Calendar Punch

Heated round punch units with pneumatic punch unit melt finished piles together for calendar type bags. Round holes can be hanged on wall or racks for easy access.

Add to Proposal

Zoom

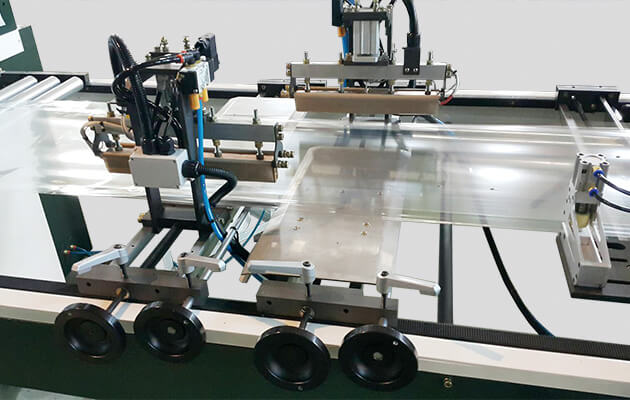

Horizontal bottom sealing

Horizontal sealing seals the bottom of the cone shape sleeves, requires 2 stations (1 for each end)

Add to Proposal

Modular Station

Servo driven ultrasonic sealing

Servo-belt drives the ultrasonic unit across to seal special materials such as non-woven & laminated paper. Distance and andgle adjustable.

Modular Station

Inline softloop insertion

Automatically cut and insertion softloop film handle onto finished bags, requires 2 stations (1 for each end)

Modular Station

Twin servo photocell tracking

For registering printing marks on both top and bottom film seperately and position them in the same spot.

Modular Station

Offline heat needle punch

Heated needle roller perforates film surface for vapor to escape

Modular Station

Irregular sealing knife

Customized sealing knife design available based on customer demands

Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for SWFFA-V.

Request Custom Specification

Available Model Variant Baselines (5 Line Configurations)

24SWFFA-V Variant 1

Bag Width: 75mm-660mm

Bag Length: 75mm-660mm

Film Thickness: 0.012mm-0.2mm
