Roll Courier Bag Making Machine (LCO-RCB600 Series)

Home Machines 02 Plastic Film Bags LCO-RCB600 Series

Roll Courier Bag Making Machine

Model: LCO-RCB600 Series Roll Courier Bag Making Machine · Converting Platform 150 - 180 bags/min

02 Film Bag Line

Cycle Speed 150 - 180 bags/min

Drive System Multi-Axis Servo

Quality Test 100% FAT

Warranty

12 Months Direct Factory Warranty

Lead Time

30 - 45 Days

Standards

CE & ISO 9001

Converting Machine Lineup

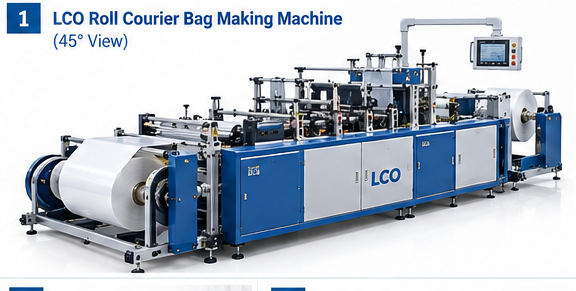

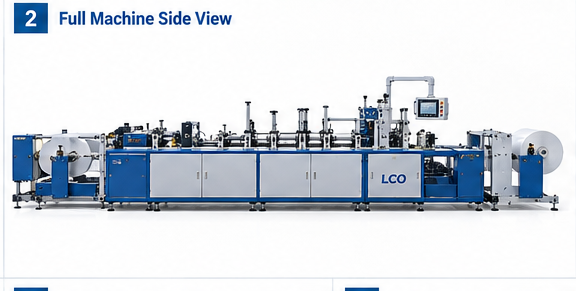

Roll Courier Bag Making Machine

Model: LCO-RCB600 Series Roll Courier Bag Making Machine

Continuous high-speed converting line for pre-opened and perforated courier bags on roll, integrating servo feeding, bottom sealing, pre-opening, perforation and automatic rewinding for automated e-commerce packaging.

Max Design Speed 150 - 180 bags/min

Applicable Materials HDPE / LDPE (16 - 150 μm)

Primary Web Dimension Working Width: 100 - 600 mm

Drive & Tension Control Bag Length: 100 - 800 mm

Request Technical Proposal & Layout Email Engineering

Direct Channels:

CE Certified

ISO 9001

Engineering Advantages

Automation & Mechanical Highlights

Integrated high-precision motion controls engineered for minimal film waste, tight registration, and 24/7 continuous duty.

Servo Motor Feeding & Pre-Opening: High-precision tension control and servo-driven pre-opening structure designed specifically for downstream automated bagging machinery.

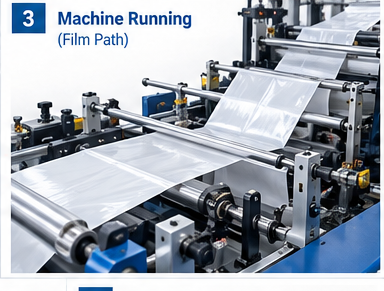

Integrated Continuous Workflow: Combines film feeding, bottom sealing, pre-opening, perforation and automatic roll rewinding in a single continuous converting path.

Automatic Tear Line Perforation: Creates controlled, consistent tear lines between consecutive bags while retaining roll continuity.

PLC + Touch Screen HMI: Intuitive centralized operator interface with automatic length setting, batch counting and material-end auto-stop protection.

Photoelectric Print Registration: Optical sensor tracks print marks on branded e-commerce films to maintain exact pattern alignment.

Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for LCO-RCB600 Series.

Request Custom Specification

Operational & Environmental Baseline Specifications

Model Designation	LCO-RCB600

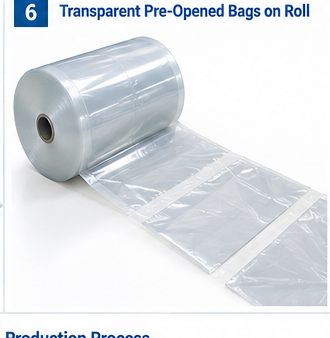

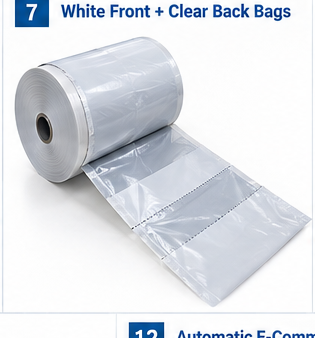

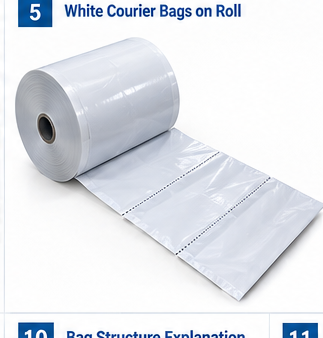

Target Bag Structure	Pre-Opened / Perforated Courier Bags on Roll
Production Line Configuration	Single Line Continuous Converting
Applicable Raw Materials	HDPE / LDPE Film
Finished Bag Width	100 - 600 mm
Finished Bag Length	100 - 800 mm
Film Thickness Range	0.016 - 0.15 mm (16 - 150 μm)
Rated Production Speed	150 - 180 bags/min
Max. Unwinding Diameter	Ø600 mm (3-inch / 76 mm core)

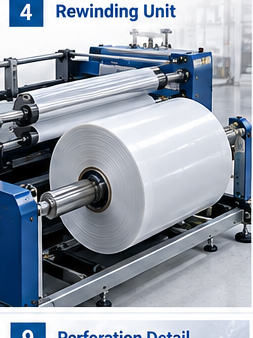

Max. Rewinding Diameter	Ø400 mm (3-inch / 76 mm core)
Feeding & Pre-Opening System	Multi-Axis Servo Motor Control
Sealing System	Heavy-Duty Bottom Sealing Unit
Perforation System	Automatic High-Precision Perforation
Tension Control	Automatic Constant Tension Control
Machine Dimensions (L × W × H)	Approx. 6500 × 2300 × 1800 mm
Total Machine Weight	Approx. 1,400 kg
Total Power Requirement	Approx. 5 kW (3-Phase 220V / 380V / 440V, 50/60Hz)

Engineering Architecture

Converting Methodology & Technical Overview

In-depth operational details, sealing mechanics, and tension stability principles for Roll Courier Bag Making Machine.

Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Roll Courier Bag Making Machine.

View All Industries

E-Commerce Fulfillment & Warehousing

Automated High-Speed Bagging Lines

Apparel, Garments & Soft Goods Packaging

Electronics, Connectors & Hardware Parts

Pharmaceutical & Daily Goods Logistics

Related Machinery

Alternative Converting Lines

Compare All Lineups

02 Film Bag

Plastic Express Courier Bag Making Machine Model: LCO-ECB Series

Plastic Express Courier Bag Making Machine

High-speed self-sealing poly mailer and express courier bag production platform, integrating servo feeding, hot-melt adhesive and release-tape application, side sealing, cutting, counting and stacking up to 240 bags/min.

200 - 240 bags/min HDPE / LDPE / LLDPE / Co-ex PE

View Specs Inquire

02 Film Bag

Liquid & Freshness-Preservation Zipper Bag Making Machine Model: LCO-ZB Series

Liquid & Freshness-Preservation Zipper Bag Making Machine

High-performance zipper bag converting platform engineered for water-resistant, leak-resistant and freshness-preservation packaging, incorporating ultrasonic zipper sealing, reinforced side sealing, automatic slider insertion and precision temperature control.

Up to 180 bags/min PE / LDPE / PP / BOPP / PA Laminates

View Specs Inquire

02 Film Bag

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine Model: LCO-2L Series

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine

Dual-line high-speed automated bag making platform engineered for supermarket, grocery and retail T-shirt / vest shopping bags, featuring independent dual servo feeding, high-precision print tracking, bottom hot sealing & cutting, and automatic handle punching.

100 - 250 bags/min × 2 HDPE / LDPE / Biodegradable & Recycled Films

View Specs Inquire

Customized Converting Sizing

Configure Your LCO-RCB600 Series Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

Send Bag Spec for Line Proposal Email Engineering Drawings

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report

Guaranteed mechanical speed and daily bag output

Plant floor space CAD drawing and power distribution plan

Itemized quotation including tooling, spare kits and FAT testing

High-Res Inspection

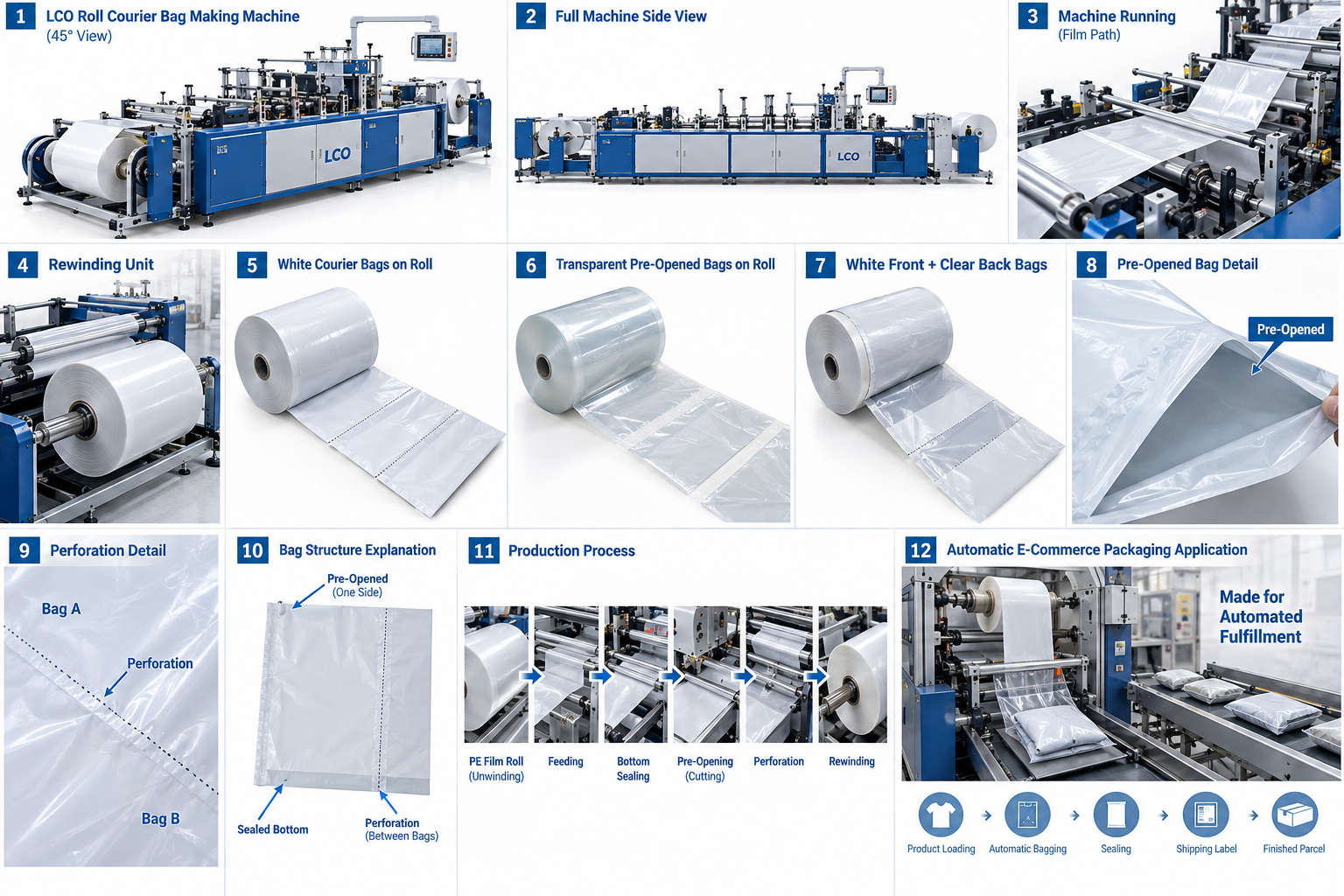

LCO-RCB600 Series · Station Inspection
