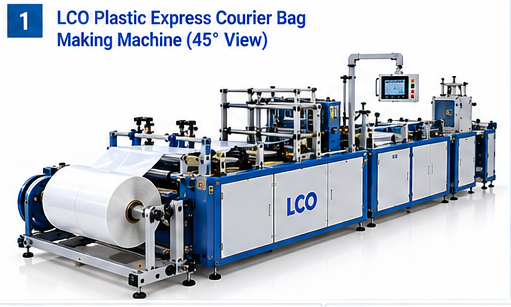

Plastic Express Courier Bag Making Machine (LCO-ECB Series)

Home Machines 02 Plastic Film Bags LCO-ECB Series

Plastic Express Courier Bag Making Machine

Model: LCO-ECB Series Plastic Express Courier Bag Making Machine · Converting Platform 200 - 240 bags/min

02 Film Bag Line

Cycle Speed 200 - 240 bags/min

Drive System Multi-Axis Servo

Quality Test 100% FAT

Warranty

12 Months Direct Factory Warranty

Lead Time

30 - 45 Days

Standards

CE & ISO 9001

Converting Machine Lineup

Plastic Express Courier Bag Making Machine

Model: LCO-ECB Series Plastic Express Courier Bag Making Machine

High-speed self-sealing poly mailer and express courier bag production platform, integrating servo feeding, hot-melt adhesive and release-tape application, side sealing, cutting, counting and stacking up to 240 bags/min.

Max Design Speed 200 - 240 bags/min

Applicable Materials HDPE / LDPE / LLDPE / Co-ex PE

Primary Web Dimension Max Bag Size: 800 × 1100 mm

Drive & Tension Control Film Thickness: 30 - 120 μm

Request Technical Proposal & Layout Email Engineering

Direct Channels:

CE Certified

ISO 9001

Engineering Advantages

Automation & Mechanical Highlights

Integrated high-precision motion controls engineered for minimal film waste, tight registration, and 24/7 continuous duty.

High-Speed Output: Engineered for up to 240 bags/min continuous converting with single or dual-line production capability.

Integrated Hot-Melt Adhesive System: Automatic glue applicator and siliconized release-film dispenser for tamper-evident self-sealing flaps.

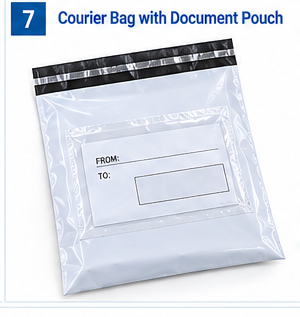

Dual-Line & Returnable Options: Supports double adhesive lines for reusable e-commerce return mailers and integrated back-sheet waybill document pockets.

Servo Feeding & Photoelectric Tracking: High-accuracy servo length control paired with optical registration sensors for printed poly mailers.

Automatic Counting & Stacking: Synchronized stacker delivers organized, counted bag batches directly ready for carton packaging.

Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for LCO-ECB Series.

Request Custom Specification

Operational & Environmental Baseline Specifications

Model Designation	LCO-ECB800 / ECB1000 / ECB1200
Target Bag Structure	Self-Sealing Express Courier Bags & Poly Mailers

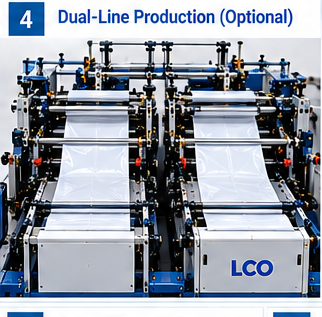

Production Line Configuration	Single Line / Dual Line (Optional)
Applicable Raw Materials	HDPE / LDPE / LLDPE / Co-extruded PE
Min. Bag Width	60 mm
Max. Bag Size by Model	ECB800: 500 × 700 mm \| ECB1000: 700 × 900 mm \| ECB1200: 800 × 1100 mm
Film Thickness Range	0.03 - 0.12 mm (30 - 120 μm)
Rated Production Speed	200 - 240 bags/min
Max. Unwinding Diameter	Ø600 mm
Feeding System	Precision AC Servo Control
Adhesive Application	Automatic Hot-Melt Glue System
Release Film Dispenser	Automatic Siliconized Release-Film Feeder
Print Tracking	High-Sensitivity Photoelectric Registration Sensor
Batch Counting & Stacking	Integrated Automatic Counter & Stacker
Power Supply Requirement	3-Phase 220V / 380V / 440V, 50/60Hz

Engineering Architecture

Converting Methodology & Technical Overview

In-depth operational details, sealing mechanics, and tension stability principles for Plastic Express Courier Bag Making Machine.

Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Plastic Express Courier Bag Making Machine.

View All Industries

E-Commerce Retail & Parcel Shipping

Courier, Express & Postal Services

Apparel, Fashion & Textile Mailers

Returnable E-Commerce Packaging

Security & Tamper-Evident Envelopes

Related Machinery

Alternative Converting Lines

Compare All Lineups

02 Film Bag

Roll Courier Bag Making Machine Model: LCO-RCB600 Series

Roll Courier Bag Making Machine

Continuous high-speed converting line for pre-opened and perforated courier bags on roll, integrating servo feeding, bottom sealing, pre-opening, perforation and automatic rewinding for automated e-commerce packaging.

150 - 180 bags/min HDPE / LDPE (16 - 150 μm)

View Specs Inquire

02 Film Bag

Liquid & Freshness-Preservation Zipper Bag Making Machine Model: LCO-ZB Series

Liquid & Freshness-Preservation Zipper Bag Making Machine

High-performance zipper bag converting platform engineered for water-resistant, leak-resistant and freshness-preservation packaging, incorporating ultrasonic zipper sealing, reinforced side sealing, automatic slider insertion and precision temperature control.

Up to 180 bags/min PE / LDPE / PP / BOPP / PA Laminates

View Specs Inquire

02 Film Bag

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine Model: LCO-2L Series

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine

Dual-line high-speed automated bag making platform engineered for supermarket, grocery and retail T-shirt / vest shopping bags, featuring independent dual servo feeding, high-precision print tracking, bottom hot sealing & cutting, and automatic handle punching.

100 - 250 bags/min × 2 HDPE / LDPE / Biodegradable & Recycled Films

View Specs Inquire

Customized Converting Sizing

Configure Your LCO-ECB Series Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

Send Bag Spec for Line Proposal Email Engineering Drawings

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report

Guaranteed mechanical speed and daily bag output

Plant floor space CAD drawing and power distribution plan

Itemized quotation including tooling, spare kits and FAT testing

High-Res Inspection

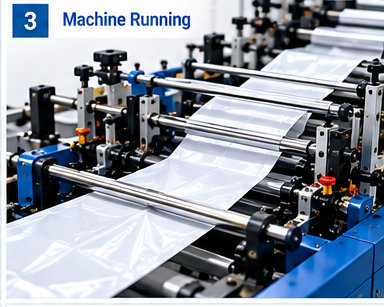

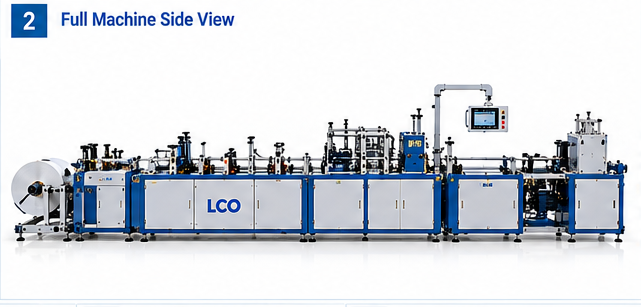

LCO-ECB Series · Station Inspection
