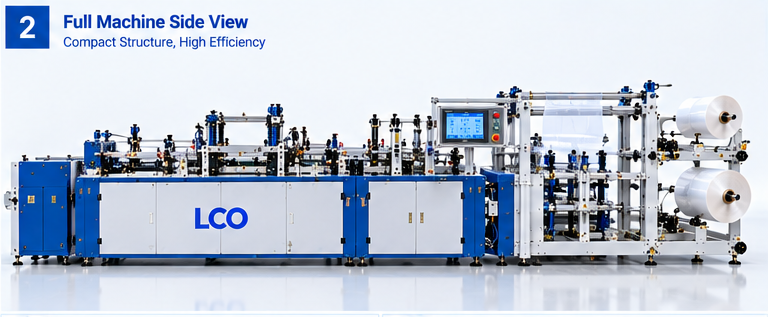

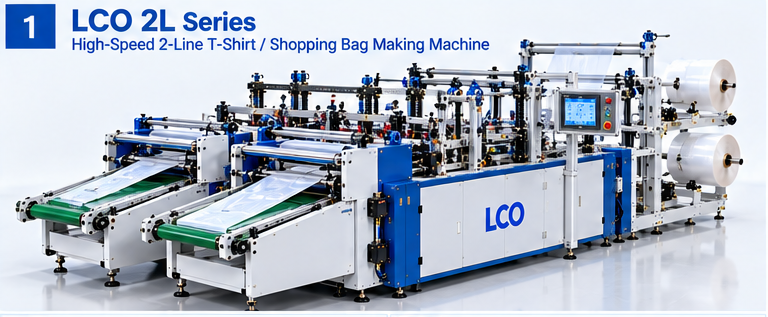

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine (LCO-2L Series)

Home Machines 02 Plastic Film Bags LCO-2L Series

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine

Model: LCO-2L Series High-Speed 2-Line T-Shirt / Shopping Bag Making Machine · Converting Platform 100 - 250 bags/min × 2

02 Film Bag Line

Cycle Speed 100 - 250 bags/min × 2

Drive System Multi-Axis Servo

Quality Test 100% FAT

Warranty

12 Months Warranty & Global Onsite Commissioning

Lead Time

30 - 45 Days

Standards

CE & ISO 9001

Converting Machine Lineup

High-Speed 2-Line T-Shirt / Shopping Bag Making Machine

Model: LCO-2L Series High-Speed 2-Line T-Shirt / Shopping Bag Making Machine

Dual-line high-speed automated bag making platform engineered for supermarket, grocery and retail T-shirt / vest shopping bags, featuring independent dual servo feeding, high-precision print tracking, bottom hot sealing & cutting, and automatic handle punching.

Max Design Speed 100 - 250 bags/min × 2

Applicable Materials HDPE / LDPE / Biodegradable & Recycled Films

Primary Web Dimension Max Bag Size: 550 × 900 mm

Drive & Tension Control Film Thickness: 10 - 55 μm/layer

Request Technical Proposal & Layout Email Engineering

Direct Channels:

CE Certified

ISO 9001

Engineering Advantages

Automation & Mechanical Highlights

Integrated high-precision motion controls engineered for minimal film waste, tight registration, and 24/7 continuous duty.

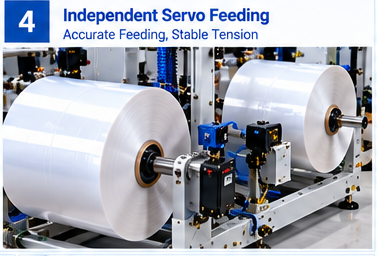

Independent Dual Servo Feeding: Separate servo control for each production line supports precise bag-length accuracy and synchronized dual-lane converting.

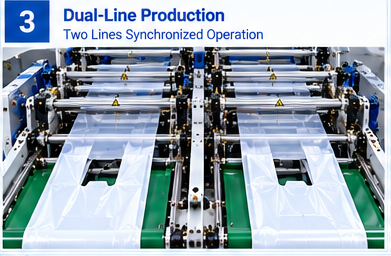

High-Output Dual-Line Production: Parallel processing yields up to 250 bags/min per line (500 bags/min combined output) to maximize throughput while minimizing floor space and labor.

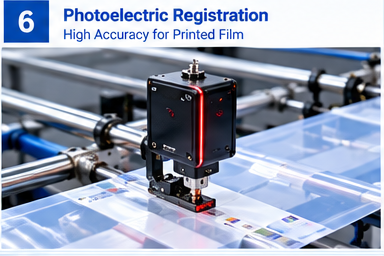

Dual Photoelectric Registration: Two independent optical print sensors track printed films on each line separately, maintaining exact cut-off alignment across pattern variations.

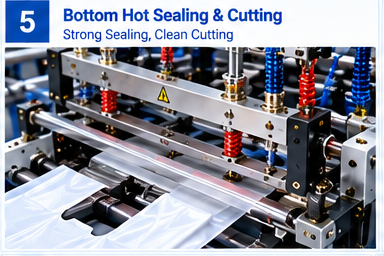

Bottom Hot Sealing & Hot Cutting: Heavy-duty thermal sealing bar and precision knife deliver strong, hermetic bottom seals tailored for heavy grocery loads.

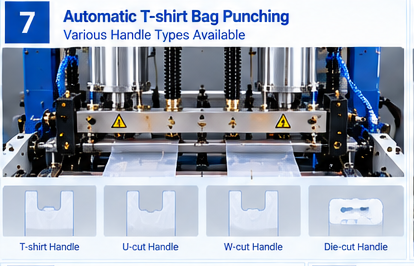

Automatic T-Shirt Handle Puncher: In-line pneumatic/hydraulic vest bag punch unit cuts handles cleanly with integrated automatic scrap/waste collection.

Centralized PLC + Touch Screen HMI: Digital control interface featuring automatic length setting, batch counting, recipe storage, and material-end auto-stop protection.

Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for LCO-2L Series.

Request Custom Specification

Operational & Environmental Baseline Specifications

Model Designation	LCO-2L450 / LCO-2L600
Target Bag Structure	T-Shirt / Vest Shopping Bags (Plain or Printed)
Production Line Configuration	2 Lines (Dual-Line Synchronized Production)
Applicable Raw Materials	HDPE, LDPE, Biodegradable (PLA/PBAT), Recycled Films
Finished Bag Width by Model	LCO-2L450: 200 - 400 mm \| LCO-2L600: 300 - 550 mm
Finished Bag Height by Model	LCO-2L450: 300 - 650 mm \| LCO-2L600: 350 - 900 mm
Film Thickness Range	10 - 55 micron / layer (0.010 - 0.055 mm)
Target Production Speed	100 - 250 bags/min × 2 Lines (Up to 500 bags/min combined)
Material Feed Speed	80 - 100 m/min
Max. Unwinding Diameter	Ø900 mm
Feeding System	Independent Dual-Axis AC Servo Motor Control
Sealing & Cutting Method	Bottom Hot Sealing & Flying Hot Knife Cutting
Handle Punching Unit	Integrated Automatic T-Shirt / Vest Bag Puncher
Print Tracking	Dual Independent High-Sensitivity Photoelectric Sensors
Control Architecture	PLC Central Controller + Touch Screen Operating HMI
Air Compressor Requirement	2 - 3 HP (0.6 - 0.8 MPa)
Total Power Requirement	LCO-2L450: Approx. 14 kW \| LCO-2L600: Approx. 15 kW (3-Phase 220V/380V/440V)
Total Machine Weight	LCO-2L450: Approx. 2,700 kg \| LCO-2L600: Approx. 3,200 kg
Machine Dimensions (L × W × H)	LCO-2L450: 7.0 × 1.5 × 1.9 m \| LCO-2L600: 8.5 × 1.75 × 1.9 m

Engineering Architecture

Converting Methodology & Technical Overview

In-depth operational details, sealing mechanics, and tension stability principles for High-Speed 2-Line T-Shirt / Shopping Bag Making Machine.

Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for High-Speed 2-Line T-Shirt / Shopping Bag Making Machine.

View All Industries

Supermarkets, Hypermarkets & Grocery Stores

Food Service, Takeaway & Restaurant Carry Bags

Retail Apparel, Department Stores & Convenience Chains

Pharmacies, Drugstores & Healthcare Retail

Eco-Friendly Compostable & Biodegradable Packaging
