Home Machines 02 Plastic Film Bags BFTDGFA-V
Folded Bag Making Machines

Twin Servo T-shirt bag making machine + bag folding system

Model: BFTDGFA-V Folded Bag Making Machines · Converting Platform 20-90 strokes/min
Twin Servo T-shirt bag making machine + bag folding system 02 Film Bag Line
Cycle Speed 20-90 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Twin Servo T-shirt bag making machine + bag folding system

Model: BFTDGFA-V Folded Bag Making Machines
The twin servo t-shirt bag making machine equipped with vacuum waste film removal system for T-shirt bag on rolls, the 2 servo controlling 2 lines with printing register accurately.
Max Design Speed 20-90 strokes/min
Applicable Materials HDPE, LDPE, Heavy Gauge PE Films
Primary Web Dimension Width: 10"-23"x2 | Length: 12"-45"
Drive & Tension Control Thickness: 0.012mm-0.1mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the BFTDGFA-V.

Tensionless high speed hot-cut system

Upper sealing blade & bottom heating wire makes strong and high speed sealing. Tensionless sealing avoids sealing line pull& elongation for highspeed production. Seperated upper and bottom temperature control for easy micro-adjustment.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Twin Servo T-shirt bag making machine + bag folding system.

Inquire About Custom Tooling

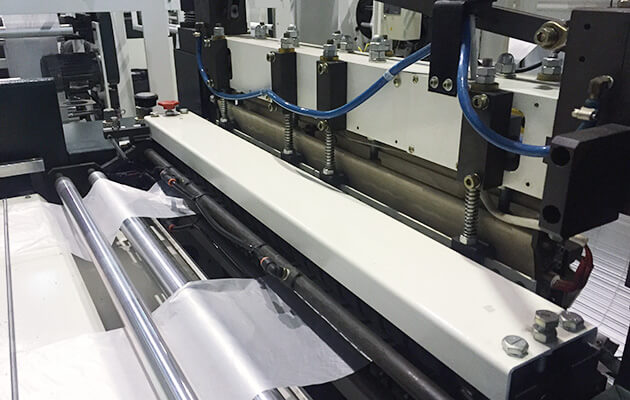

Tensionless sealing Zoom

Tensionless sealing

sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.

Add to Proposal

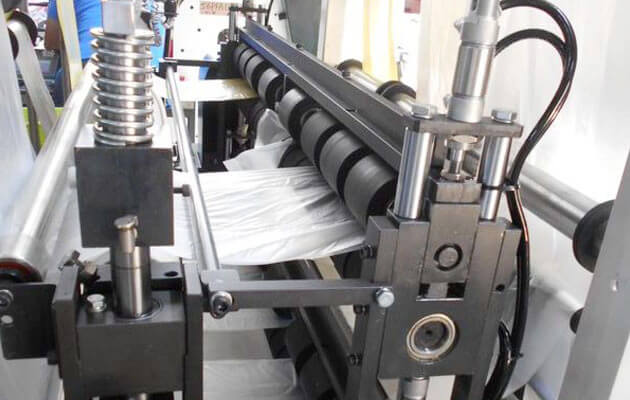

Interlock rollers (Sealing Isolation) Zoom

Interlock rollers (Sealing Isolation)

Interlock rollers synchonize and isolate film tension between sealing and outfeed to avoid sealing elongation.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for BFTDGFA-V.

Request Custom Specification
Available Model Variant Baselines (1 Line Configurations)
50BFTGFA-V Variant 1
Bag Width: 10"-23"x2
Bag Length: 12"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 20-90
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
50BFTGFA-V 10"-23"x2 12"-45" 0.012mm-0.1mm 20-90
Operational & Environmental Baseline Specifications
Machine Title Twin Servo T-shirt bag making machine + bag folding system
Model Designation BFTDGFA-V
Converting Category Folded Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 10"-23"x2
Bag Length Range 12"-45"
Film Thickness Range 0.012mm-0.1mm
Production Speed 20-90 strokes/min
Standard Model Lineups 50BFTGFA-V
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Twin Servo T-shirt bag making machine + bag folding system.

View All Industries
Automated Dispenser Packs
Hospital & Medical Waste Sacks
Industrial Interfold Bags
Large Garbage Liners
