Home Machines 02 Plastic Film Bags BFC-V+SL
Bottom Seal Bag Making Machines

Tensionless thick guage bottom seal bag making machine + Heat-slitting system

Model: BFC-V+SL Bottom Seal Bag Making Machines · Converting Platform 40-120 strokes/min
Tensionless thick guage bottom seal bag making machine + Heat-slitting system 02 Film Bag Line
Cycle Speed 40-120 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Tensionless thick guage bottom seal bag making machine + Heat-slitting system

Model: BFC-V+SL Bottom Seal Bag Making Machines
Our heavy duty plastic bag machine equipped with heat-slitting, the upper sealing blade & bottom heating wire makes strong and high speed sealing.
Max Design Speed 40-120 strokes/min
Applicable Materials HDPE, LDPE, LLDPE, Recycled PE Films
Primary Web Dimension Width: 6"-26" (total) | Length: 5"-40"
Drive & Tension Control Thickness: 0.012mm-0.3mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the BFC-V+SL.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Sealing pause

Program controlled pauses on lowest point to elongate required sealing time for thick film

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Tensionless thick guage bottom seal bag making machine + Heat-slitting system.

Inquire About Custom Tooling
Tensionless sealing Zoom

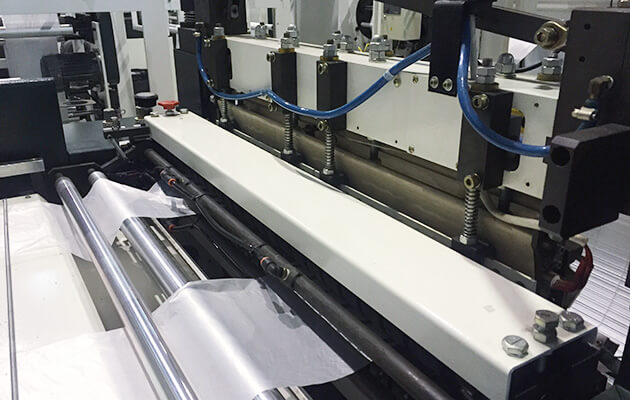

Tensionless sealing

sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.

Add to Proposal
Pneumatic heat-slitting device Zoom

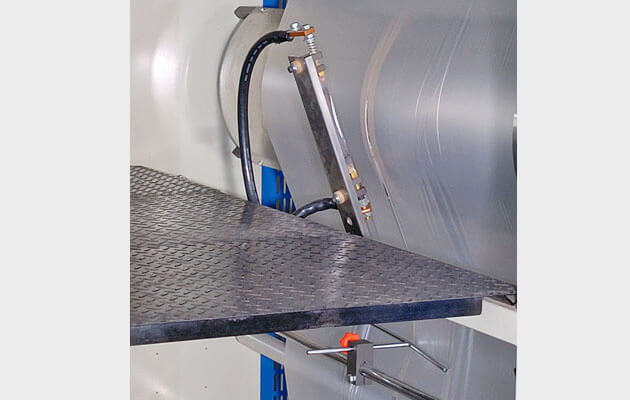

Pneumatic heat-slitting device

Heated sealing blades place parallel to material flow, slitting and sealing 2 layers for film at the same time as material feed. Jumbo film rolls can be slitted into several smaller rolls with 1 prinitng registry.

Add to Proposal
Various hole punches - Kidney/round/notch/butterfly/others Zoom

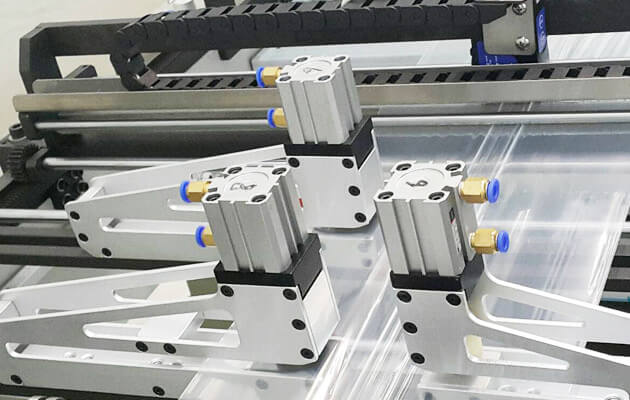

Various hole punches - Kidney/round/notch/butterfly/others

Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine.

Add to Proposal
Modular Station

Saw-type hole punch

Saw type punch for punching hole on thick-gauge film.

Standard conveyor Zoom

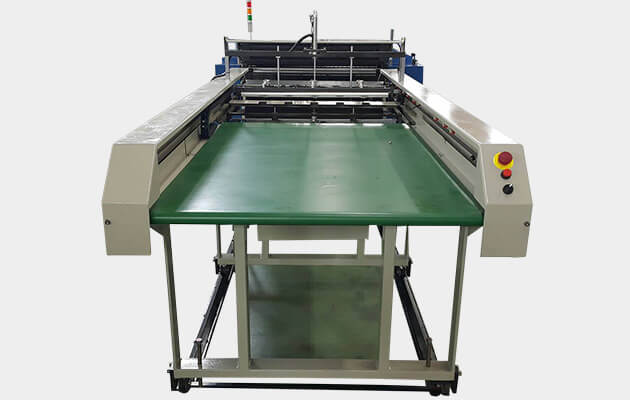

Standard conveyor

Standard conveyor unit moves after counts reach. Available in connected type and separated type.

Add to Proposal
Air-cooling conveyor Zoom

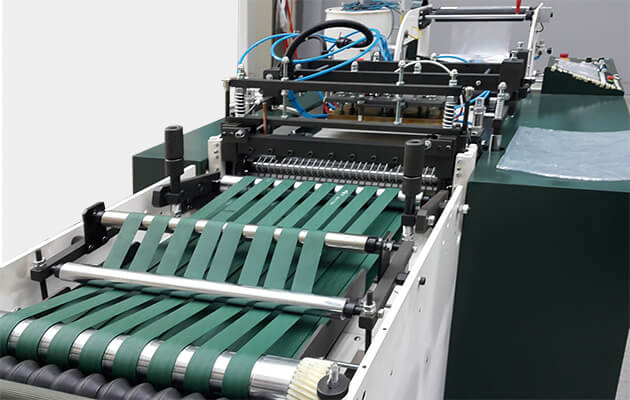

Air-cooling conveyor

Conveyor unit with air-blowing for cooling seal lines on thick bag, avoid bag re-weld to each other.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for BFC-V+SL.

Request Custom Specification
Available Model Variant Baselines (4 Line Configurations)
28BFC-V+SL Variant 1
Bag Width: 6"-26" (total)
Bag Length: 5"-40"
Film Thickness: 0.012mm-0.3mm
Capacity (strokes/min): 40-120
32BFC-V+SL Variant 2
Bag Width: 6"-30" (total)
Bag Length: 5"-40"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 40-120
42BFC-V+SL Variant 3
Bag Width: 6"-40" (total)
Bag Length: 5"-40"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 40-120
50BFC-V+SL Variant 4
Bag Width: 6"-48" (total)
Bag Length: 5"-40"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 40-120
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
28BFC-V+SL 6"-26" (total) 5"-40" 0.012mm-0.3mm 40-120
32BFC-V+SL 6"-30" (total) 5"-40" 0.012mm-0.1mm 40-120
42BFC-V+SL 6"-40" (total) 5"-40" 0.012mm-0.1mm 40-120
50BFC-V+SL 6"-48" (total) 5"-40" 0.012mm-0.1mm 40-120
Operational & Environmental Baseline Specifications
Machine Title Tensionless thick guage bottom seal bag making machine + Heat-slitting system
Model Designation BFC-V+SL
Converting Category Bottom Seal Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 6"-26" (total)
Bag Length Range 5"-40"
Film Thickness Range 0.012mm-0.3mm
Production Speed 40-120 strokes/min
Standard Model Lineups 28BFC-V+SL / 32BFC-V+SL / 42BFC-V+SL / 50BFC-V+SL
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Tensionless thick guage bottom seal bag making machine + Heat-slitting system.

View All Industries
Industrial Heavy Sacks
Agricultural Liners
Drum Liners & Covers
Construction Film Bags
Retail Packaging Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Roll Courier Bag Making Machine 02 Film Bag
Roll Courier Bag Making Machine Model: LCO-RCB600 Series

Roll Courier Bag Making Machine

Continuous high-speed converting line for pre-opened and perforated courier bags on roll, integrating servo feeding, bottom sealing, pre-opening, perforation and automatic rewinding for automated e-commerce packaging.

150 - 180 bags/min HDPE / LDPE (16 - 150 μm)
Plastic Express Courier Bag Making Machine 02 Film Bag
Plastic Express Courier Bag Making Machine Model: LCO-ECB Series

Plastic Express Courier Bag Making Machine

High-speed self-sealing poly mailer and express courier bag production platform, integrating servo feeding, hot-melt adhesive and release-tape application, side sealing, cutting, counting and stacking up to 240 bags/min.

200 - 240 bags/min HDPE / LDPE / LLDPE / Co-ex PE
Liquid & Freshness-Preservation Zipper Bag Making Machine 02 Film Bag
Liquid & Freshness-Preservation Zipper Bag Making Machine Model: LCO-ZB Series

Liquid & Freshness-Preservation Zipper Bag Making Machine

High-performance zipper bag converting platform engineered for water-resistant, leak-resistant and freshness-preservation packaging, incorporating ultrasonic zipper sealing, reinforced side sealing, automatic slider insertion and precision temperature control.

Up to 180 bags/min PE / LDPE / PP / BOPP / PA Laminates
Customized Converting Sizing

Configure Your BFC-V+SL Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
