Multi-line plant bag making machine
Standard Features & Specialized Systems
Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the 32BFA-V+CP1000.
Synchronized Feeding and cutting speed
Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
LCD touch panel
Easily operable human-computer interface to access parameter changes and production monitoring
Socket type IC circuit control
Automated control system can be easily replaced by socket plugin.
Sealing pause
Program controlled pauses on lowest point to elongate required sealing time for thick film
Malfunction alarm / stop
Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)
Available Optional Devices & Add-on Stations
Modular accessories, punch tooling, folding units, and seal bars available for Multi-line plant bag making machine.
Zoom

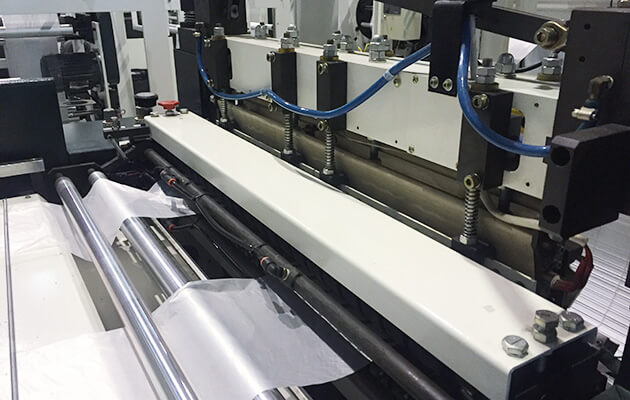

Tensionless sealing
sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.
Zoom

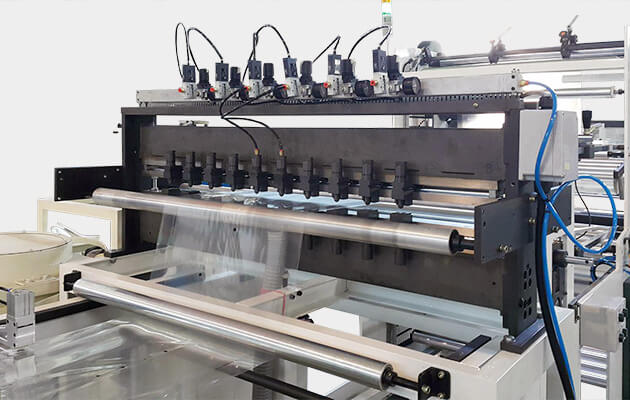

Inline continuous hole punch (CP1000)
6 points controlled pneumatic punch set can change hole punches position and pattern easily by managing the punch timing seperately for every control point, continuous process.
Zoom
Zoom

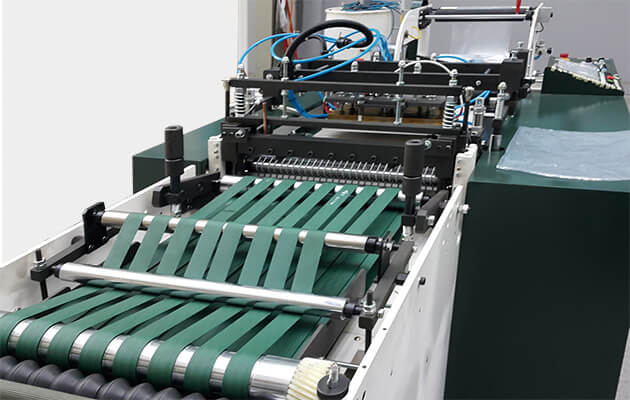

Air-cooling conveyor
Conveyor unit with air-blowing for cooling seal lines on thick bag, avoid bag re-weld to each other.
Model Variants & Technical Specifications
Compare model dimensions, stroke cycle capacities, and film web thickness for 32BFA-V+CP1000.
Target Converting Sectors
Recommended end-market packaging categories engineered for Multi-line plant bag making machine.
