Heat-slitting high-speed T-shirt bag making machine (Hot-cut system) - 6 lines system
Standard Features & Specialized Systems
Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the PFA-V+SLG6.
High speed hot-cut system：Upper sealing blade & bottom heating wire makes strong and high speed sealing. Seperated upper and bottom temperature control for easy micro-adjustment.
Synchronized Feeding and cutting speed：Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
German "Sick" photocell registration：Reliable and accurate print registration and positioning
LCD touch panel：Easily operable human-computer interface to access parameter changes and production monitoring
Socket type IC circuit control：Automated control system can be easily replaced by socket plugin.
Malfunction alarm / stop：Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)
Available Optional Devices & Add-on Stations
Modular accessories, punch tooling, folding units, and seal bars available for Heat-slitting high-speed T-shirt bag making machine (Hot-cut system) - 6 lines system.
Zoom

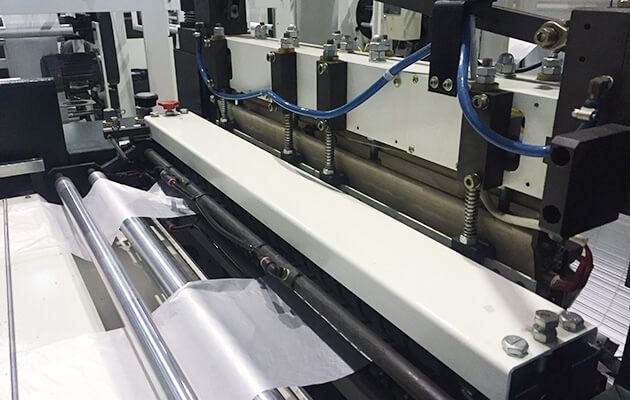

Tensionless sealing
sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.
Zoom

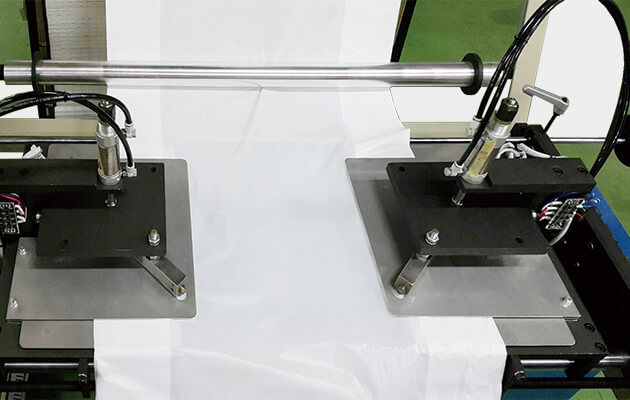

Irregular "K'sealing
Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.
Zoom

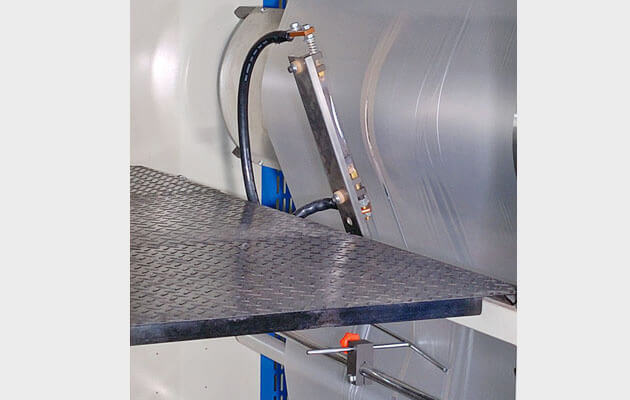

Pneumatic heat-slitting device
Heated sealing blades place parallel to material flow, slitting and sealing 2 layers for film at the same time as material feed. Jumbo film rolls can be slitted into several smaller rolls with 1 prinitng registry.
Zoom

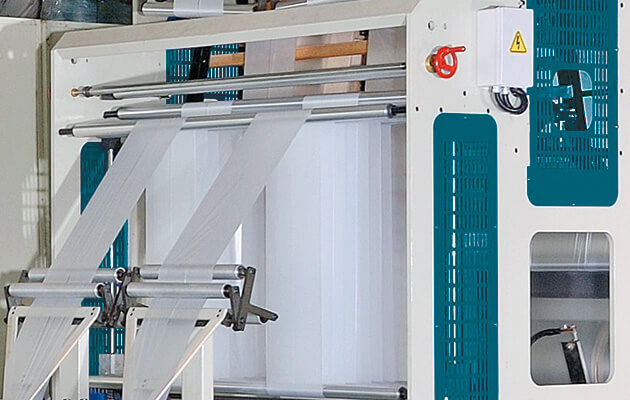

Post Gusset device
Blow up the sealed tubic film and re-gusset as done on film blown machine. Inline process used together with heat-slitting device or for printed ungusseted tube film.
Zoom

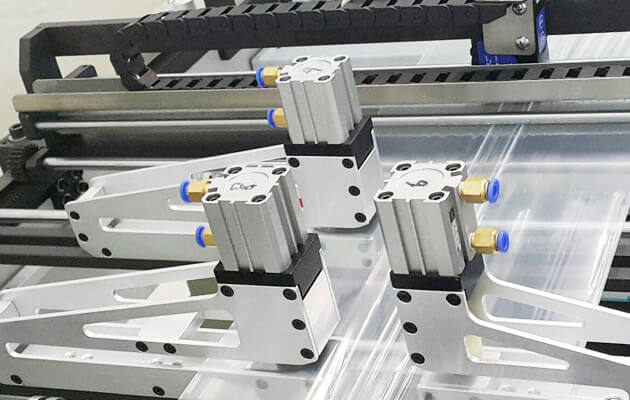

Various hole punches - Kidney/round/notch/butterfly/others
Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine
Zoom

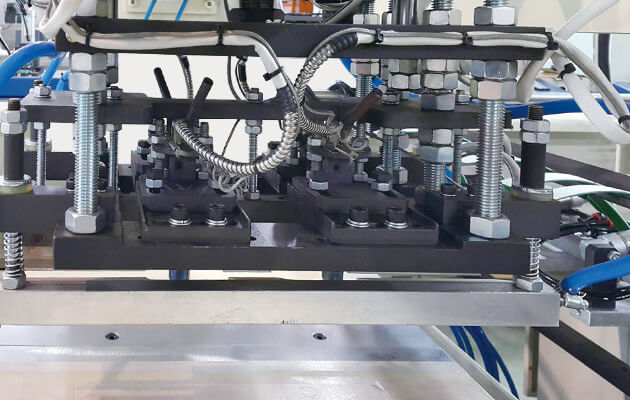

Hot-cut round Calendar Punch
Heated round punch units with pneumatic punch unit melt finished piles together for calendar type bags. Round holes can be hanged on wall or racks for easy access.
Zoom

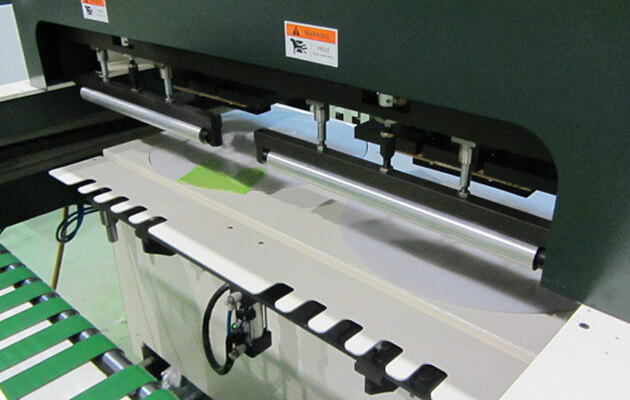

Gripper folding system
Program controlled gripper will fold finished T-shirt bag piles in half before gripping to conveyor unit.
Easy-open punch
Easy-open bags for supermarkets with additional punch allowing opening up next bag by removing the previous one.
Model Variants & Technical Specifications
Compare model dimensions, stroke cycle capacities, and film web thickness for PFA-V+SLG6.
Target Converting Sectors
Recommended end-market packaging categories engineered for Heat-slitting high-speed T-shirt bag making machine (Hot-cut system) - 6 lines system.
