Bottom Seal Bag Making Machines

Economy bottom seal bag on roll making machine + Manual roll change system

Model: BW-V Bottom Seal Bag Making Machines · Converting Platform 60-120 strokes/min
Economy bottom seal bag on roll making machine + Manual roll change system 02 Film Bag Line
Cycle Speed 60-120 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Economy bottom seal bag on roll making machine + Manual roll change system

Model: BW-V Bottom Seal Bag Making Machines
Our economy bottom seal bag on roll making machine uses upper heating knife and silicon roller base for sealing, and the cutting knife before bag outfeeding. “>

<link rel=
Max Design Speed 60-120 strokes/min
Applicable Materials HDPE, LDPE, LLDPE, Recycled PE Films
Primary Web Dimension Width: 3"-26" x1, 3"-12"x2 | Length: 3"-45"
Drive & Tension Control Thickness: 0.012mm-0.1mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the BW-V.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Sealing pause

Program controlled pauses on lowest point to elongate required sealing time for thick film

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Economy bottom seal bag on roll making machine + Manual roll change system.

Inquire About Custom Tooling

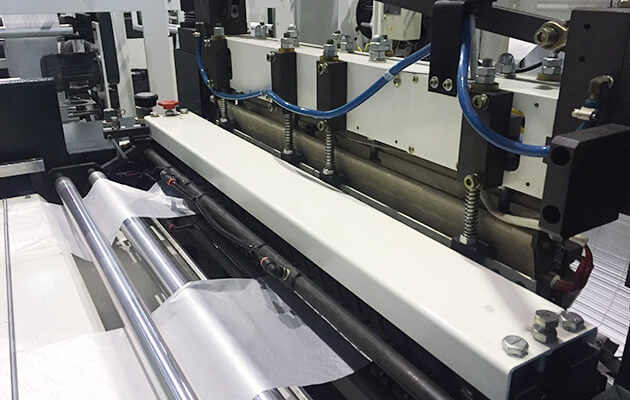

Tensionless sealing Zoom

Tensionless sealing

sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.

Add to Proposal

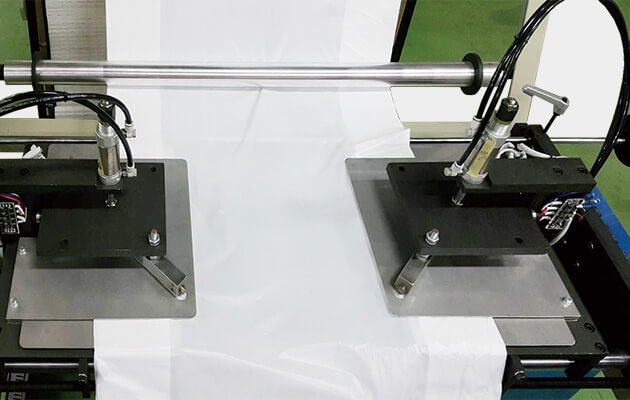

Irregular "K'sealing Zoom

Irregular "K'sealing

Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.

Add to Proposal

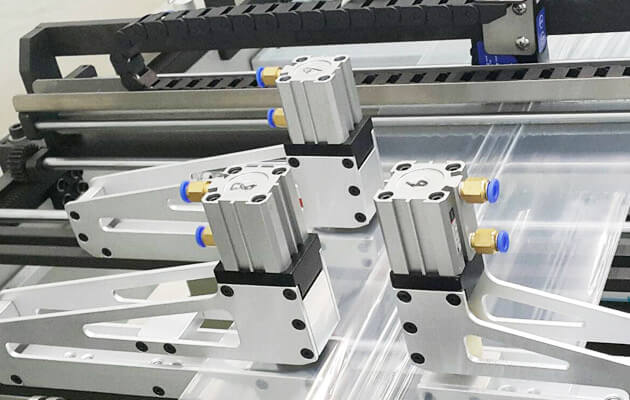

Various hole punches - Kidney/round/notch/butterfly/others Zoom

Various hole punches - Kidney/round/notch/butterfly/others

Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine.

Add to Proposal

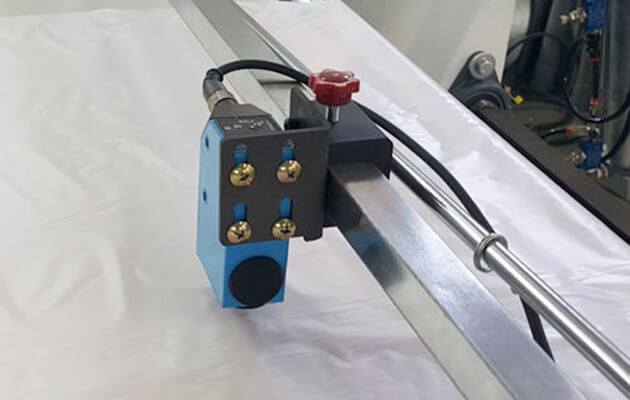

Extra photocell Zoom

Extra photocell

Extra servo outfeeding + photocell for another line of printed bag.

Add to Proposal

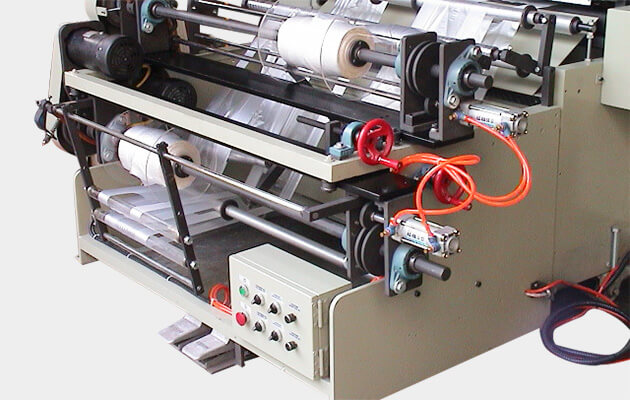

Manual rewinder Zoom

Manual rewinder

Manual rewinder requires labor to change rolls & paper core. Suitable for bag rolls that doesn't change roll often.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for BW-V.

Request Custom Specification
Available Model Variant Baselines (3 Line Configurations)
28BW-V Variant 1
Bag Width: 3"-26" x1, 3"-12"x2
Bag Length: 3"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 60-120
32BW-V Variant 2
Bag Width: 3"-30"x1, 3"-14"x2
Bag Length: 3"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 60-120
42BW-V Variant 3
Bag Width: 3"-40"x1, 3"-19"x2
Bag Length: 3"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 60-120
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
28BW-V 3"-26" x1, 3"-12"x2 3"-45" 0.012mm-0.1mm 60-120
32BW-V 3"-30"x1, 3"-14"x2 3"-45" 0.012mm-0.1mm 60-120
42BW-V 3"-40"x1, 3"-19"x2 3"-45" 0.012mm-0.1mm 60-120
Operational & Environmental Baseline Specifications
Machine Title Economy bottom seal bag on roll making machine + Manual roll change system
Model Designation BW-V
Converting Category Bottom Seal Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 3"-26" x1, 3"-12"x2
Bag Length Range 3"-45"
Film Thickness Range 0.012mm-0.1mm
Production Speed 60-120 strokes/min
Standard Model Lineups 28BW-V / 32BW-V / 42BW-V
