T-Shirt Bag Making Machines

Economic twin-servo high-speed T-shirt bag making machine (Hot-cut system)

Model: TP-V T-Shirt Bag Making Machines · Converting Platform 200/250/300 strokes/min
Economic twin-servo high-speed T-shirt bag making machine (Hot-cut system) 02 Film Bag Line
Cycle Speed 200/250/300 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Economic twin-servo high-speed T-shirt bag making machine (Hot-cut system)

Model: TP-V T-Shirt Bag Making Machines
Our twin-servo high-speed t-shirt bag machine with hot-cut suitable for printed t-shirt bags, the hot-cut system available in 200/250/300rpm systems.
Max Design Speed 200/250/300 strokes/min
Applicable Materials HDPE, LDPE, Biodegradable & Compostable PLA/PBAT Films
Primary Web Dimension Width: 10"-26"x1 or 6"-12"x2 | Length: 10"-30"
Drive & Tension Control Thickness: 0.012mm-0.025mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the TP-V.

High speed hot-cut system：Upper sealing blade & bottom heating wire makes strong and high speed sealing. Seperated upper and bottom temperature control for easy micro-adjustment.

Synchronized Feeding and cutting speed：Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration：Reliable and accurate print registration and positioning

LCD touch panel：Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control：Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop：Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Economic twin-servo high-speed T-shirt bag making machine (Hot-cut system).

Inquire About Custom Tooling

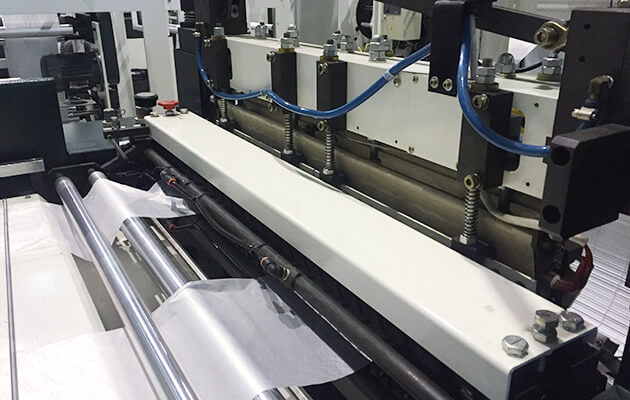

Tensionless sealing Zoom

Tensionless sealing

sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.

Add to Proposal

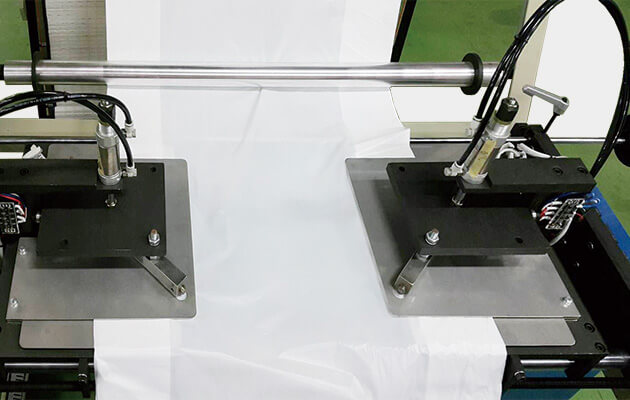

Irregular "K'sealing Zoom

Irregular "K'sealing

Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.

Add to Proposal

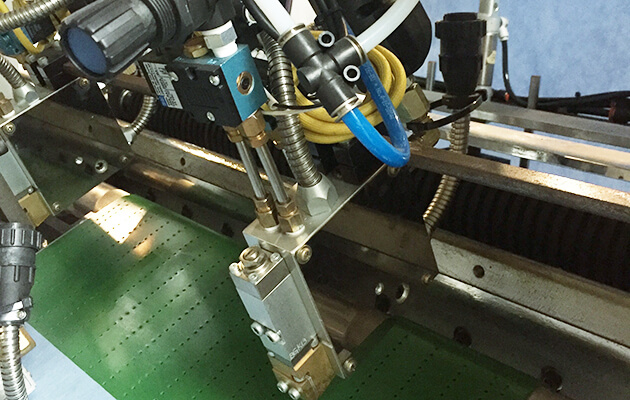

Hot-melt glue applicator Zoom

Hot-melt glue applicator

Spray or rolling-applying hot-melt glue onto film. Used for self-adhesive tape or special bag by customization.

Add to Proposal

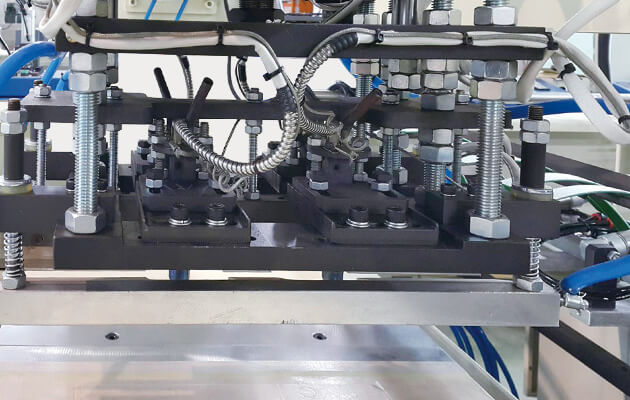

Hot-cut round Calendar Punch Zoom

Hot-cut round Calendar Punch

Heated round punch units with pneumatic punch unit melt finished piles together for calendar type bags. Round holes can be hanged on wall or racks for easy access.

Add to Proposal

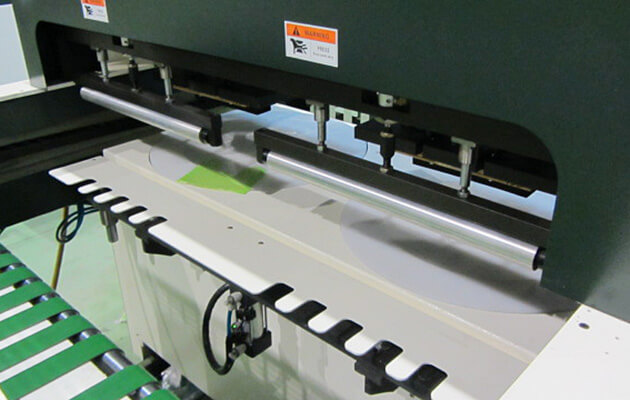

Gripper folding system Zoom

Gripper folding system

Program controlled gripper will fold finished T-shirt bag piles in half before gripping to conveyor unit.

Add to Proposal
Modular Station

Easy-open punch

Easy-open bags for supermarkets with additional punch allowing opening up next bag by removing the previous one.

Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for TP-V.

Request Custom Specification
Available Model Variant Baselines (4 Line Configurations)
28TP-V Variant 1
Bag Width: 10"-26"x1 or 6"-12"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
32TP-V Variant 2
Bag Width: 3"-14"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
42TP-V Variant 3
Bag Width: 3"-19"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
50TP-V Variant 4
Bag Width: 3"-23"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
28TP-V 10"-26"x1 or 6"-12"x2 10"-30" 0.012mm-0.025mm 200/250/300
32TP-V 3"-14"x2 10"-30" 0.012mm-0.025mm 200/250/300
42TP-V 3"-19"x2 10"-30" 0.012mm-0.025mm 200/250/300
50TP-V 3"-23"x2 10"-30" 0.012mm-0.025mm 200/250/300
Operational & Environmental Baseline Specifications
Machine Title Economic twin-servo high-speed T-shirt bag making machine (Hot-cut system)
Model Designation TP-V
Converting Category T-Shirt Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 10"-26"x1 or 6"-12"x2
Bag Length Range 10"-30"
Film Thickness Range 0.012mm-0.025mm
Production Speed 200/250/300 strokes/min
Standard Model Lineups 28TP-V / 32TP-V / 42TP-V / 50TP-V
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Economic twin-servo high-speed T-shirt bag making machine (Hot-cut system).

View All Industries
Supermarket Checkout Bags
Retail Grocery Sacks
Convenience Store Bags
Wholesale Market Carry Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Roll Courier Bag Making Machine 02 Film Bag
Roll Courier Bag Making Machine Model: LCO-RCB600 Series

Roll Courier Bag Making Machine

Continuous high-speed converting line for pre-opened and perforated courier bags on roll, integrating servo feeding, bottom sealing, pre-opening, perforation and automatic rewinding for automated e-commerce packaging.

150 - 180 bags/min HDPE / LDPE (16 - 150 μm)
Plastic Express Courier Bag Making Machine 02 Film Bag
Plastic Express Courier Bag Making Machine Model: LCO-ECB Series

Plastic Express Courier Bag Making Machine

High-speed self-sealing poly mailer and express courier bag production platform, integrating servo feeding, hot-melt adhesive and release-tape application, side sealing, cutting, counting and stacking up to 240 bags/min.

200 - 240 bags/min HDPE / LDPE / LLDPE / Co-ex PE
Liquid & Freshness-Preservation Zipper Bag Making Machine 02 Film Bag
Liquid & Freshness-Preservation Zipper Bag Making Machine Model: LCO-ZB Series

Liquid & Freshness-Preservation Zipper Bag Making Machine

High-performance zipper bag converting platform engineered for water-resistant, leak-resistant and freshness-preservation packaging, incorporating ultrasonic zipper sealing, reinforced side sealing, automatic slider insertion and precision temperature control.

Up to 180 bags/min PE / LDPE / PP / BOPP / PA Laminates
Customized Converting Sizing

Configure Your TP-V Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
