T-Shirt Bag Making Machines

Economic High-speed T-shirt bag making machine (Hot-cut system)

Model: P-V T-Shirt Bag Making Machines · Converting Platform 200/250/300 strokes/min
Economic High-speed T-shirt bag making machine (Hot-cut system) 02 Film Bag Line
Cycle Speed 200/250/300 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Economic High-speed T-shirt bag making machine (Hot-cut system)

Model: P-V T-Shirt Bag Making Machines
Our high speed t-shirt bag making machine with hot-cut system suitable for printed t-shirt bags, the hot-cut system available in 200/250/300rpm systems.
Max Design Speed 200/250/300 strokes/min
Applicable Materials HDPE, LDPE, Biodegradable & Compostable PLA/PBAT Films
Primary Web Dimension Width: 3"-26"x1 or 3"-12"x2 | Length: 10"-30"
Drive & Tension Control Thickness: 0.012mm-0.025mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the P-V.

Tensionless high speed hot-cut system

Upper sealing blade & bottom heating wire makes strong and high speed sealing. Tensionless sealing avoids sealing line pull& elongation for highspeed production. Seperated upper and bottom temperature control for easy micro-adjustment.

Gripper + pneumatic punch

When counts reached, inline gripper collect and pneumatic punch cut out waste area and removed by conveyor.

Rocking pin block

Blocking pin base rock back and forth to avoid sealing line sticking to previous bags.

Synchronized feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

Auxiliary air-blown outfeed

Air blown assists material flow of outfeeding

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Economic High-speed T-shirt bag making machine (Hot-cut system).

Inquire About Custom Tooling

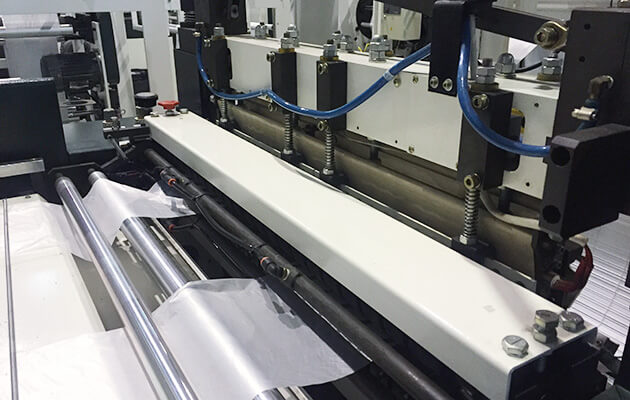

Tensionless sealing Zoom

Tensionless sealing

sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.

Add to Proposal

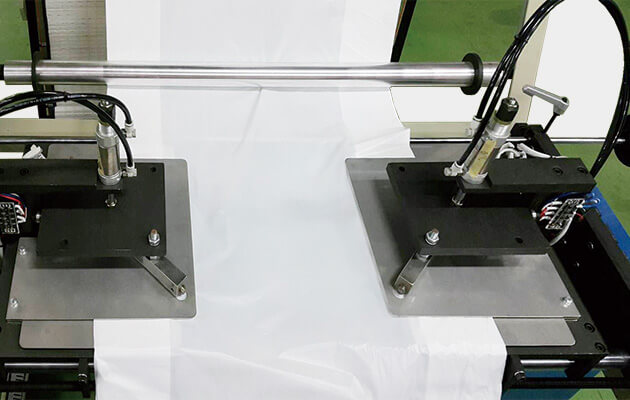

Irregular "K'sealing Zoom

Irregular "K'sealing

Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for P-V.

Request Custom Specification
Available Model Variant Baselines (4 Line Configurations)
28P-V Variant 1
Bag Width: 3"-26"x1 or 3"-12"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
32P-V Variant 2
Bag Width: 3"-30"x1 or 3"-14"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
42P-V Variant 3
Bag Width: 3"-40"x1 or 3"-19"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
50P-V Variant 4
Bag Width: 3"-48"x1 or 3"-23"x2
Bag Length: 10"-30"
Film Thickness: 0.012mm-0.025mm
Capacity (strokes/min): 200/250/300
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
28P-V 3"-26"x1 or 3"-12"x2 10"-30" 0.012mm-0.025mm 200/250/300
32P-V 3"-30"x1 or 3"-14"x2 10"-30" 0.012mm-0.025mm 200/250/300
42P-V 3"-40"x1 or 3"-19"x2 10"-30" 0.012mm-0.025mm 200/250/300
50P-V 3"-48"x1 or 3"-23"x2 10"-30" 0.012mm-0.025mm 200/250/300
Operational & Environmental Baseline Specifications
Machine Title Economic High-speed T-shirt bag making machine (Hot-cut system)
Model Designation P-V
Converting Category T-Shirt Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 3"-26"x1 or 3"-12"x2
Bag Length Range 10"-30"
Film Thickness Range 0.012mm-0.025mm
Production Speed 200/250/300 strokes/min
Standard Model Lineups 28P-V / 32P-V / 42P-V / 50P-V
Engineering Architecture

Converting Methodology & Technical Overview

In-depth operational details, sealing mechanics, and tension stability principles for Economic High-speed T-shirt bag making machine (Hot-cut system).

The Economic High-Speed T-shirt Bag Making Machine is engineered for the high-volume production of plastic carrier bags, achieving speeds up to 300 strokes per minute. Featuring an advanced tensionless hot-cut system, it ensures strong, reliable sealing without film elongation for both thin and thick materials. Designed for efficiency, the machine accurately processes plain and printed bags using German "Sick" photocell technology. With customizable modules—such as automatic pneumatic punching and irregular "K" sealing—it delivers a high-speed, cost-effective solution for scalable retail packaging manufacturing.
Technical Consultation

Technical & Operational FAQs for P-V

Key engineering answers regarding sealing dynamics, shift yield benchmarks, and film resin compatibility.

Ask an Engineer
A hot-cut system completes cutting and sealing in a single action, making it suitable for printed film applications. A cold-cut system uses a separate process—sealing the bag bottom first, followed by cutting—and does not support printed film.
Actual production yield depends on bag dimensions, film consistency, operator efficiency, and planned downtime. As a practical operational benchmark: running at 250 rpm continuous operation with standard supermarket bag sizes, a single machine operating over an 8-hour shift yields approximately 100,000–120,000 single-line bags or 200,000–240,000 double-line bags, accounting for material changeovers and routine adjustments.
Yes, within the supported thickness range (0.012–0.100 mm). The machine easily processes bio-based PE blends (PLA/PBAT) and post-consumer recycled (PCR) HDPE/LDPE films. For eco-materials with non-standard thermal properties, we recommend consulting PAL's engineering team to optimize sealing temperature and dwell time parameters prior to production.
Yes. Manufacturing bag making machinery since 1988, PAL delivers complete post-purchase support, including on-site or video-guided installation, specialized operator training, OEM spare parts supply, and rapid remote technical diagnostics.
Live Machinery Operation

Operating Video & Converting Demonstration

Watch the Economic High-speed T-shirt bag making machine (Hot-cut system) (P-V) running in production, demonstrating film feeding, precision sealing, and smooth bag discharge.

Request Production Proposal
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Economic High-speed T-shirt bag making machine (Hot-cut system).

View All Industries
Supermarket Checkout Bags
Retail Grocery Sacks
Convenience Store Bags
Wholesale Market Carry Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Roll Courier Bag Making Machine 02 Film Bag
Roll Courier Bag Making Machine Model: LCO-RCB600 Series

Roll Courier Bag Making Machine

Continuous high-speed converting line for pre-opened and perforated courier bags on roll, integrating servo feeding, bottom sealing, pre-opening, perforation and automatic rewinding for automated e-commerce packaging.

150 - 180 bags/min HDPE / LDPE (16 - 150 μm)
Plastic Express Courier Bag Making Machine 02 Film Bag
Plastic Express Courier Bag Making Machine Model: LCO-ECB Series

Plastic Express Courier Bag Making Machine

High-speed self-sealing poly mailer and express courier bag production platform, integrating servo feeding, hot-melt adhesive and release-tape application, side sealing, cutting, counting and stacking up to 240 bags/min.

200 - 240 bags/min HDPE / LDPE / LLDPE / Co-ex PE
Liquid & Freshness-Preservation Zipper Bag Making Machine 02 Film Bag
Liquid & Freshness-Preservation Zipper Bag Making Machine Model: LCO-ZB Series

Liquid & Freshness-Preservation Zipper Bag Making Machine

High-performance zipper bag converting platform engineered for water-resistant, leak-resistant and freshness-preservation packaging, incorporating ultrasonic zipper sealing, reinforced side sealing, automatic slider insertion and precision temperature control.

Up to 180 bags/min PE / LDPE / PP / BOPP / PA Laminates
Customized Converting Sizing

Configure Your P-V Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
