Home Machines 02 Plastic Film Bags BGFA-V
Folded Bag Making Machines

Bottom seal bag making machine + bag folding system

Model: BGFA-V Folded Bag Making Machines · Converting Platform 20-90 strokes/min
Bottom seal bag making machine + bag folding system 02 Film Bag Line
Cycle Speed 20-90 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Bottom seal bag making machine + bag folding system

Model: BGFA-V Folded Bag Making Machines
Our bottom seal bag making machine with automatic folding system, the servo-controlled 1st & 2nd fold individually piece by piece.
Max Design Speed 20-90 strokes/min
Applicable Materials HDPE, LDPE, Heavy Gauge PE Films
Primary Web Dimension Width: 10"-30" | Length: 12"-45"
Drive & Tension Control Thickness: 0.012mm-0.1mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the BGFA-V.

Tensionless high speed hot-cut system

Upper sealing blade & bottom heating wire makes strong and high speed sealing. Tensionless sealing avoids sealing line pull& elongation for highspeed production. Seperated upper and bottom temperature control for easy micro-adjustment.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Bottom seal bag making machine + bag folding system.

Inquire About Custom Tooling

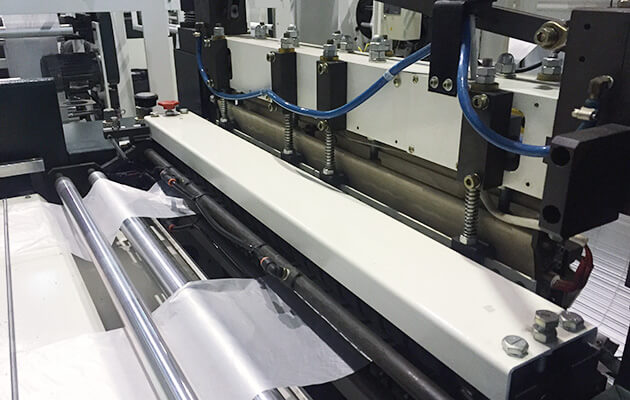

Tensionless sealing Zoom

Tensionless sealing

sealing units of upper sealing blade + bottom heating wire after the cutting blade; welding are done under tensionless film condition. Strong and reliable without pulling/elongation for thin and thick films. Sealing appearance may appear ripple.

Add to Proposal

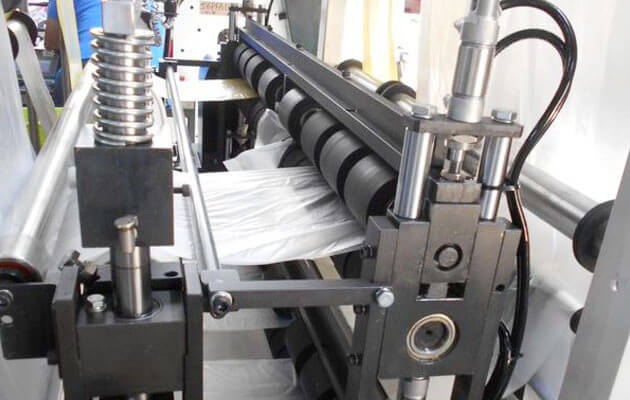

Interlock rollers (Sealing Isolation) Zoom

Interlock rollers (Sealing Isolation)

Interlock rollers synchonize and isolate film tension between sealing and outfeed to avoid sealing elongation.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for BGFA-V.

Request Custom Specification
Available Model Variant Baselines (3 Line Configurations)
32BGFA-V Variant 1
Bag Width: 10"-30"
Bag Length: 12"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 20-90
42BGFA-V Variant 2
Bag Width: 10"-40"
Bag Length: 12"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 20-90
50BGFA-V Variant 3
Bag Width: 10"-48"
Bag Length: 12"-45"
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 20-90
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
32BGFA-V 10"-30" 12"-45" 0.012mm-0.1mm 20-90
42BGFA-V 10"-40" 12"-45" 0.012mm-0.1mm 20-90
50BGFA-V 10"-48" 12"-45" 0.012mm-0.1mm 20-90
Operational & Environmental Baseline Specifications
Machine Title Bottom seal bag making machine + bag folding system
Model Designation BGFA-V
Converting Category Folded Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 10"-30"
Bag Length Range 12"-45"
Film Thickness Range 0.012mm-0.1mm
Production Speed 20-90 strokes/min
Standard Model Lineups 32BGFA-V / 42BGFA-V / 50BGFA-V
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Bottom seal bag making machine + bag folding system.

View All Industries
Automated Dispenser Packs
Hospital & Medical Waste Sacks
Industrial Interfold Bags
Large Garbage Liners
Related Machinery

Alternative Converting Lines

Compare All Lineups
Roll Courier Bag Making Machine 02 Film Bag
Roll Courier Bag Making Machine Model: LCO-RCB600 Series

Roll Courier Bag Making Machine

Continuous high-speed converting line for pre-opened and perforated courier bags on roll, integrating servo feeding, bottom sealing, pre-opening, perforation and automatic rewinding for automated e-commerce packaging.

150 - 180 bags/min HDPE / LDPE (16 - 150 μm)
Plastic Express Courier Bag Making Machine 02 Film Bag
Plastic Express Courier Bag Making Machine Model: LCO-ECB Series

Plastic Express Courier Bag Making Machine

High-speed self-sealing poly mailer and express courier bag production platform, integrating servo feeding, hot-melt adhesive and release-tape application, side sealing, cutting, counting and stacking up to 240 bags/min.

200 - 240 bags/min HDPE / LDPE / LLDPE / Co-ex PE
Liquid & Freshness-Preservation Zipper Bag Making Machine 02 Film Bag
Liquid & Freshness-Preservation Zipper Bag Making Machine Model: LCO-ZB Series

Liquid & Freshness-Preservation Zipper Bag Making Machine

High-performance zipper bag converting platform engineered for water-resistant, leak-resistant and freshness-preservation packaging, incorporating ultrasonic zipper sealing, reinforced side sealing, automatic slider insertion and precision temperature control.

Up to 180 bags/min PE / LDPE / PP / BOPP / PA Laminates
Customized Converting Sizing

Configure Your BGFA-V Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
