Home Machines 01 Laminated Pouches ZPB-V
Zipper Bag Making Machines

Zipper Bag Making Machine - Attachment Type

Model: ZPB-V Zipper Bag Making Machines · Converting Platform 30-140 strokes/min
Zipper Bag Making Machine - Attachment Type 01 Laminated Line
Cycle Speed 30-140 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Zipper Bag Making Machine - Attachment Type

Model: ZPB-V Zipper Bag Making Machines
The Zipper Bag Making Machine - Attachment Type efficiently produces zipper bags with precision and reliability, making it ideal for streamlined production across various applications.
Max Design Speed 30-140 strokes/min
Applicable Materials LDPE, LLDPE, Laminated Barrier Films, Zipper Profiles
Primary Web Dimension Width: 60mm-450mm | Length: 60mm-450mm
Drive & Tension Control Thickness: 0.012mm-0.1mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the ZPB-V.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Zipper Bag Making Machine - Attachment Type.

Inquire About Custom Tooling

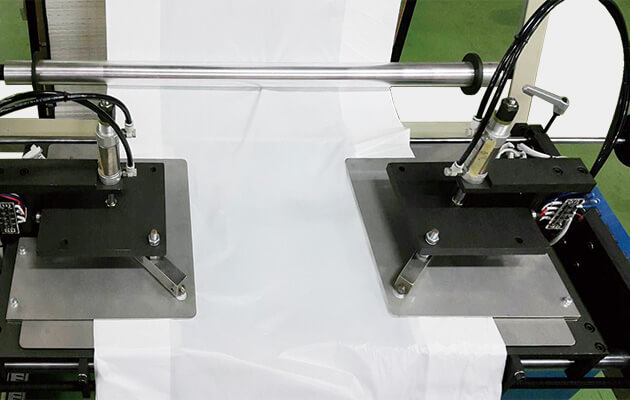

Irregular "K'sealing Zoom

Irregular "K'sealing

Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.

Add to Proposal
Modular Station

Auxiliary sealing

Heat-pressing and sealing on specific position on the bag, such as gusset gaps between 4 layer and 2 layer position to achieve stable and reliable sealing.

Modular Station

Auxiliary intermitted ultrasonic sealing

Crushing and sealing zipper on zipper film & zipper profile for water-tight and good side-sealing performance

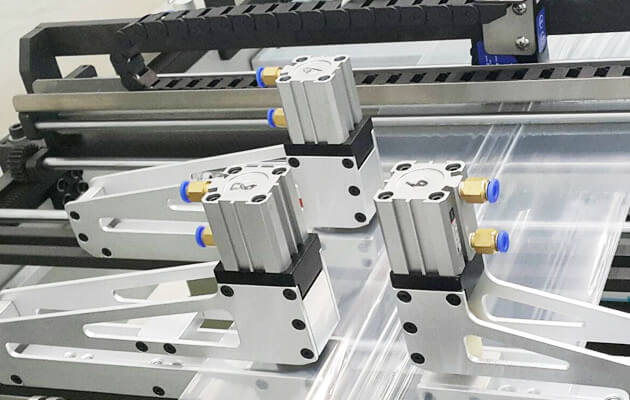

Various hole punches - Kidney/round/notch/butterfly/others Zoom

Various hole punches - Kidney/round/notch/butterfly/others

Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine.

Add to Proposal

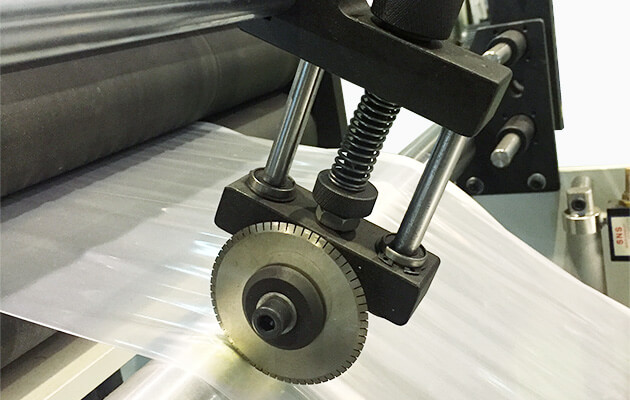

Continuous perforation device Zoom

Continuous perforation device

Circular perforation blade are fixed and perforated line parallel to material feed direction.

Add to Proposal
Modular Station

Saw-type hole punch

Saw type punch for punching hole on thick-gauge film.

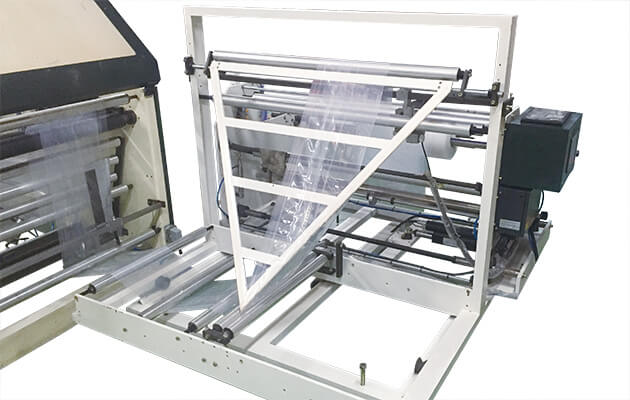

Triangle folding device Zoom

Triangle folding device

Sheet film is folded in half by passing triangular frame and pinch.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for ZPB-V.

Request Custom Specification
Available Model Variant Baselines (3 Line Configurations)
500ZPB-V Variant 1
Bag Width: 60mm-450mm
Bag Length: 60mm-450mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
750ZPB-V Variant 2
Bag Width: 60mm-550mm
Bag Length: 60mm-750mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
900ZPB-V Variant 3
Bag Width: 60mm-650mm
Bag Length: 60mm-850mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
500ZPB-V 60mm-450mm 60mm-450mm 0.012mm-0.1mm 30-140
750ZPB-V 60mm-550mm 60mm-750mm 0.012mm-0.1mm 30-140
900ZPB-V 60mm-650mm 60mm-850mm 0.012mm-0.1mm 30-140
Operational & Environmental Baseline Specifications
Machine Title Zipper Bag Making Machine - Attachment Type
Model Designation ZPB-V
Converting Category Zipper Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 60mm-450mm
Bag Length Range 60mm-450mm
Film Thickness Range 0.012mm-0.1mm
Production Speed 30-140 strokes/min
Standard Model Lineups 500ZPB-V / 750ZPB-V / 900ZPB-V
Engineering Architecture

Converting Methodology & Technical Overview

In-depth operational details, sealing mechanics, and tension stability principles for Zipper Bag Making Machine - Attachment Type.

The Zipper Bag Making Machine - Attachment Type is engineered for the efficient and reliable production of zipper pouches, operating at speeds up to 140 strokes per minute. Featuring an advanced continuous zipper attachment system with a built-in anti-jamming alarm, it ensures smooth profile integration while easily processing films from 0.012mm to 0.1mm in thickness. Designed for versatility and precision, the machine utilizes German "Sick" photocell technology for accurate print registration. Supported by highly customizable modules—such as ultrasonic side-sealing for water-tight edges, triangle folding, and versatile hole punches—it delivers an adaptable, streamlined solution for heavy-duty and customized zipper packaging.
Technical Consultation

Technical & Operational FAQs for ZPB-V

Key engineering answers regarding sealing dynamics, shift yield benchmarks, and film resin compatibility.

Ask an Engineer
This machine is specifically engineered for high-efficiency manufacturing of reclosable zipper bags, primarily utilizing LDPE and PP films. It handles a wide spectrum of bag dimensions—widths from 100 mm to 500 mm and lengths from 150 mm to 600 mm. It is ideal for retail packaging, apparel bags, and industrial storage pouches. For custom sizes or specialized pouch geometries, our engineering team provides custom modifications during the project review phase.
Equipped with advanced ultrasonic and thermal welding modules, the machine seamlessly seals standard PE and PP zipper profiles. It supports film thicknesses from 0.04 mm to 0.12 mm per layer (40 to 120 microns). Precise web tension control paired with adjustable temperature profiles ensures that high-clarity retail films and heavy-gauge packaging films are sealed smoothly without wrinkling or thermal deformation.
The machine achieves a maximum mechanical speed of up to 140 strokes per minute (spm). Actual throughput depends on material quality, film gauge, and bag dimensions. Standard retail bags run near top rated speed, whereas larger sizes or thicker films requiring extended dwell and cooling times typically run between 80 to 110 bags per minute to ensure optimal seal strength.
To maximize automation and adapt to diverse packaging requirements, PAL offers a comprehensive range of modular add-ons, including inline handle punches (butterfly, round, or handle slots), custom sealing dies for different zipper profiles, and a high-precision photo-sensor registration system for printed films. These optional modules can be flexibly upgraded and integrated directly into your existing production line.
Backed by over 35 years of global industry experience, PAL provides a comprehensive 1-year warranty on core mechanical components. Services include step-by-step video installation guidance, structured operator training, guaranteed genuine spare parts availability, and rapid remote technical service to minimize downtime. As an ISO 9001 and CE-certified builder, PAL ensures reliable performance throughout your equipment's operational lifecycle.
Live Machinery Operation

Operating Video & Converting Demonstration

Watch the Zipper Bag Making Machine - Attachment Type (ZPB-V) running in production, demonstrating film feeding, precision sealing, and smooth bag discharge.

Request Production Proposal
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Zipper Bag Making Machine - Attachment Type.

View All Industries
Food Resealable Storage
Fresh Produce & Deli Packaging
Pharmaceutical Pouch Packaging
Garment Slider Zipper Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Flat Bottom Pouch Making Machine 01 Laminated
Flat Bottom Pouch Making Machine Model: 650HPF Series

Flat Bottom Pouch Making Machine

Heavy-duty snap-on wall panel converting line designed for high-speed four-side seal and flat-bottom box pouches with robotic side-gusset positioning and automatic timing belt conveyance.

20-130 pcs/min Multi-Layer Laminated Barrier Films, PET/AL/PE, Kraft Paper Laminates
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine 01 Laminated
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine Model: 600HDF Series

High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine

Advanced versatile pouch making line supporting reverse feeding, integrated swing-arm unwinding, and EPC automatic web guiding for three-side seal and stand-up zipper pouches.

20-220 pcs/min BOPP, PET, CPP, PE, Nylon, Aluminum Foil, Multi-Layer Laminates
High-Speed Three Side Seal Pouch Making Machine 01 Laminated
High-Speed Three Side Seal Pouch Making Machine Model: 600HSF Series

High-Speed Three Side Seal Pouch Making Machine

Dedicated ultra-high-speed converting platform capable of up to 300 pouches/min with double swing-arm tension control, anti-scratch reverse gantry feeding and low-noise cutting.

20-300 pcs/min PA/PE, PET/PE, PET/AL/PE, Paper/PE, Retort Barrier Laminates
Customized Converting Sizing

Configure Your ZPB-V Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
High-Res Inspection

High-Res Inspection
ZPB-V · Station Inspection
CE Certified
CE CONFORMITY
Directive 2006/42/EC (Machinery Safety)
ISO 9001
ISO 9001:2015
Certified Quality Management System
