Home Machines 01 Laminated Pouches SWZ-V
Zipper Bag Making Machines

Zipper Film Bag Making Machine

Model: SWZ-V Zipper Bag Making Machines · Converting Platform 30-140 strokes/min
Zipper Film Bag Making Machine 01 Laminated Line
Cycle Speed 30-140 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Zipper Film Bag Making Machine

Model: SWZ-V Zipper Bag Making Machines
The Zipper Film Bag Making Machine combines zipper extrusion and film production for efficient, high-quality zipper film bags. Its advanced sealing and cooling systems ensure durable, deformation-free packaging.
Max Design Speed 30-140 strokes/min
Applicable Materials LDPE, LLDPE, Laminated Barrier Films, Zipper Profiles
Primary Web Dimension Width: 60mm-450mm | Length: 60mm-450mm
Drive & Tension Control Thickness: 0.012mm-0.1mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the SWZ-V.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Zipper Film Bag Making Machine.

Inquire About Custom Tooling

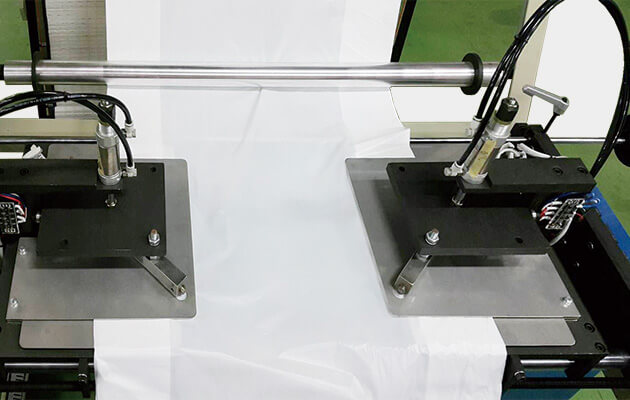

Irregular "K'sealing Zoom

Irregular "K'sealing

Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.

Add to Proposal
Modular Station

Auxiliary sealing

Heat-pressing and sealing on specific position on the bag, such as gusset gaps between 4 layer and 2 layer position to achieve stable and reliable sealing.

Modular Station

Auxiliary intermitted ultrasonic sealing

Crushing and sealing zipper on zipper film & zipper profile for water-tight and good side-sealing performance.

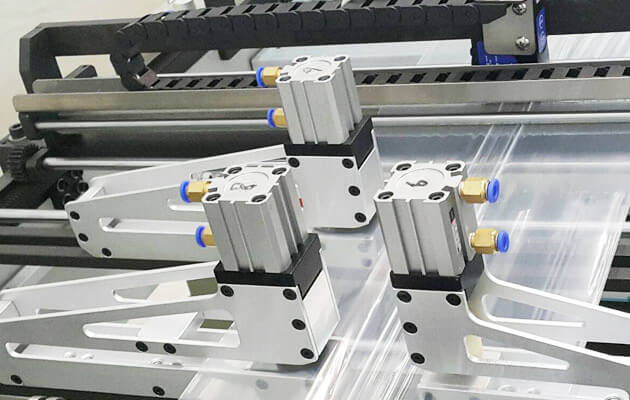

Various hole punches - Kidney/round/notch/butterfly/others Zoom

Various hole punches - Kidney/round/notch/butterfly/others

Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine.

Add to Proposal
Modular Station

Central Slitting device

Fixed slitting blade slitting film material during material feed.

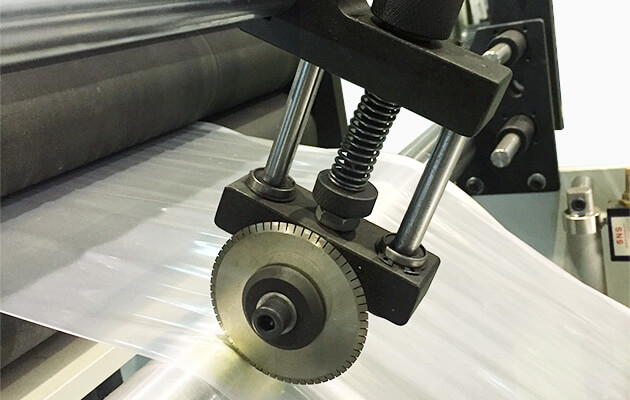

Continuous perforation device Zoom

Continuous perforation device

Circular perforation blade are fixed and perforated line parallel to material feed direction.

Add to Proposal
Modular Station

Saw-type hole punch

Saw type punch for punching hole on thick-gauge film.

Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for SWZ-V.

Request Custom Specification
Available Model Variant Baselines (3 Line Configurations)
500SWZ-V Variant 1
Bag Width: 60mm-450mm
Bag Length: 60mm-450mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
750SWZ-V Variant 2
Bag Width: 60mm-550mm
Bag Length: 60mm-750mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
900SWZ-V Variant 3
Bag Width: 60mm-650mm
Bag Length: 60mm-850mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
500SWZ-V 60mm-450mm 60mm-450mm 0.012mm-0.1mm 30-140
750SWZ-V 60mm-550mm 60mm-750mm 0.012mm-0.1mm 30-140
900SWZ-V 60mm-650mm 60mm-850mm 0.012mm-0.1mm 30-140
Operational & Environmental Baseline Specifications
Machine Title Zipper Film Bag Making Machine
Model Designation SWZ-V
Converting Category Zipper Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 60mm-450mm
Bag Length Range 60mm-450mm
Film Thickness Range 0.012mm-0.1mm
Production Speed 30-140 strokes/min
Standard Model Lineups 500SWZ-V / 750SWZ-V / 900SWZ-V
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Zipper Film Bag Making Machine.

View All Industries
Food Resealable Storage
Fresh Produce & Deli Packaging
Pharmaceutical Pouch Packaging
Garment Slider Zipper Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Flat Bottom Pouch Making Machine 01 Laminated
Flat Bottom Pouch Making Machine Model: 650HPF Series

Flat Bottom Pouch Making Machine

Heavy-duty snap-on wall panel converting line designed for high-speed four-side seal and flat-bottom box pouches with robotic side-gusset positioning and automatic timing belt conveyance.

20-130 pcs/min Multi-Layer Laminated Barrier Films, PET/AL/PE, Kraft Paper Laminates
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine 01 Laminated
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine Model: 600HDF Series

High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine

Advanced versatile pouch making line supporting reverse feeding, integrated swing-arm unwinding, and EPC automatic web guiding for three-side seal and stand-up zipper pouches.

20-220 pcs/min BOPP, PET, CPP, PE, Nylon, Aluminum Foil, Multi-Layer Laminates
High-Speed Three Side Seal Pouch Making Machine 01 Laminated
High-Speed Three Side Seal Pouch Making Machine Model: 600HSF Series

High-Speed Three Side Seal Pouch Making Machine

Dedicated ultra-high-speed converting platform capable of up to 300 pouches/min with double swing-arm tension control, anti-scratch reverse gantry feeding and low-noise cutting.

20-300 pcs/min PA/PE, PET/PE, PET/AL/PE, Paper/PE, Retort Barrier Laminates
Customized Converting Sizing

Configure Your SWZ-V Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
High-Res Inspection

High-Res Inspection
SWZ-V · Station Inspection
