Home Machines 01 Laminated Pouches ZPB+SD
Zipper Bag Making Machines

Zipper Attachment Bag making Machine + Automatic Slider Insertion System

Model: ZPB+SD Zipper Bag Making Machines · Converting Platform 30-140 strokes/min
Zipper Attachment Bag making Machine + Automatic Slider Insertion System 01 Laminated Line
Cycle Speed 30-140 strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

Zipper Attachment Bag making Machine + Automatic Slider Insertion System

Model: ZPB+SD Zipper Bag Making Machines
The Zipper Attachment Bag Making Machine + Automatic Slider Insertion System combines precision, speed, and efficiency to produce zipper bags with integrated slider profiles, ensuring high-quality resealable packaging for diverse applications.
Max Design Speed 30-140 strokes/min
Applicable Materials LDPE, LLDPE, Laminated Barrier Films, Zipper Profiles
Primary Web Dimension Width: 60mm-450mm | Length: 60mm-450mm
Drive & Tension Control Thickness: 0.012mm-0.1mm
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the ZPB+SD.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for Zipper Attachment Bag making Machine + Automatic Slider Insertion System.

Inquire About Custom Tooling
Modular Station

Irregular "K'sealing

Diagonal sealing device sealing the gusseted films to form stand-up rectangular bottom for flat bag. Mostly used for heavy duty packaging.

Auxiliary sealing Zoom

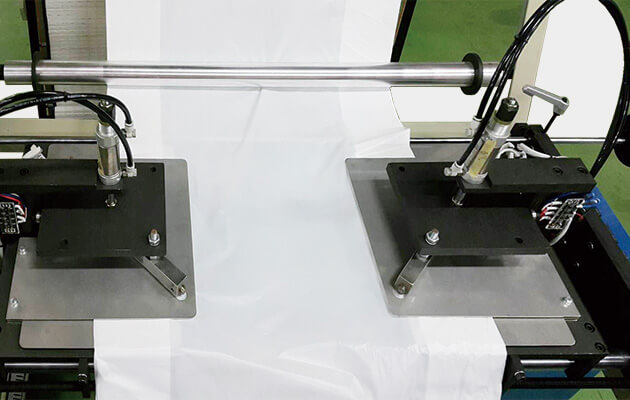

Auxiliary sealing

Applies targeted heat pressing and sealing at critical transitions, such as corner fold gaps between 2-layer and 4-layer structures, ensuring airtight seal integrity.

Add to Proposal
Modular Station

Auxiliary intermitted ultrasonic sealing

Crushing and sealing zipper on zipper film & zipper profile for water-tight and good side-sealing performance

Various hole punches - Kidney/round/notch/butterfly/others Zoom

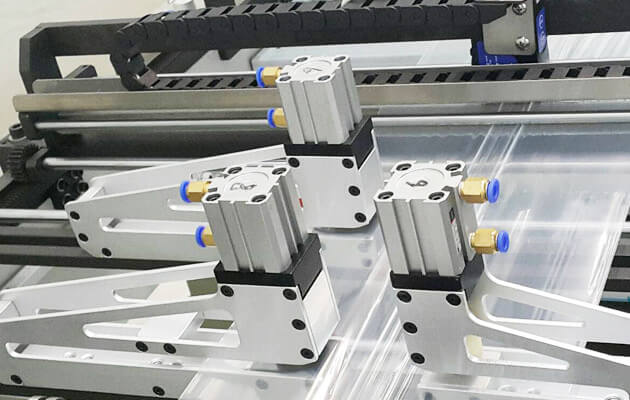

Various hole punches - Kidney/round/notch/butterfly/others

Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine

Add to Proposal
continuous perforation device Zoom

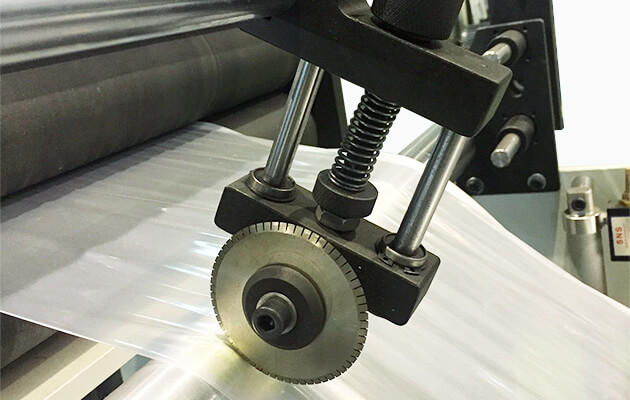

continuous perforation device

Circular perforation blade are fixed and perforated line parallel to material feed direction.

Add to Proposal
Modular Station

Saw-type hole punch

Saw type punch for punching hole on thick-gauge film

Triangle folding device Zoom

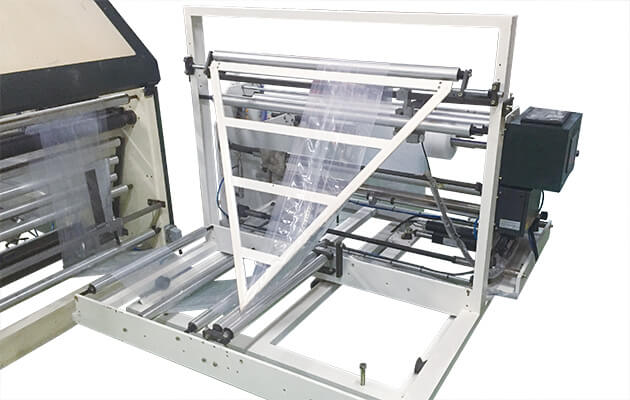

Triangle folding device

Sheet film is folded in half by passing triangular frame and pinch.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for ZPB+SD.

Request Custom Specification
Available Model Variant Baselines (3 Line Configurations)
500ZPB-V+SD Variant 1
Bag Width: 60mm-450mm
Bag Length: 60mm-450mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
750ZPB-V+SD Variant 2
Bag Width: 60mm-550mm
Bag Length: 60mm-750mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
900ZPB-V+SD Variant 3
Bag Width: 60mm-650mm
Bag Length: 60mm-850mm
Film Thickness: 0.012mm-0.1mm
Capacity (strokes/min): 30-140
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
500ZPB-V+SD 60mm-450mm 60mm-450mm 0.012mm-0.1mm 30-140
750ZPB-V+SD 60mm-550mm 60mm-750mm 0.012mm-0.1mm 30-140
900ZPB-V+SD 60mm-650mm 60mm-850mm 0.012mm-0.1mm 30-140
Operational & Environmental Baseline Specifications
Machine Title Zipper Attachment Bag making Machine + Automatic Slider Insertion System
Model Designation ZPB+SD
Converting Category Zipper Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Bag Width Range 60mm-450mm
Bag Length Range 60mm-450mm
Film Thickness Range 0.012mm-0.1mm
Production Speed 30-140 strokes/min
Standard Model Lineups 500ZPB-V+SD / 750ZPB-V+SD / 900ZPB-V+SD
Engineering Architecture

Converting Methodology & Technical Overview

In-depth operational details, sealing mechanics, and tension stability principles for Zipper Attachment Bag making Machine + Automatic Slider Insertion System.

The Zipper Attachment Bag Making Machine with Automatic Slider Insertion System is designed for the high-efficiency production of premium resealable slider bags, operating at speeds up to 140 strokes per minute. Featuring an advanced automatic slider insertion unit and continuous zipper attachment, it effortlessly integrates slider profiles at up to 100 pcs/min while handling film thicknesses from 0.012mm to 0.1mm. Built for precision and flexibility, the machine utilizes German "Sick" photocell technology and an automatic anti-jamming alarm. With customizable options—including ultrasonic sealing, triangle folding, and specialized hole punching—it provides a comprehensive, automated solution for manufacturing high-quality slider zipper packaging.
Live Machinery Operation

Operating Video & Converting Demonstration

Watch the Zipper Attachment Bag making Machine + Automatic Slider Insertion System (ZPB+SD) running in production, demonstrating film feeding, precision sealing, and smooth bag discharge.

Request Production Proposal
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for Zipper Attachment Bag making Machine + Automatic Slider Insertion System.

View All Industries
Food Resealable Storage
Fresh Produce & Deli Packaging
Pharmaceutical Pouch Packaging
Garment Slider Zipper Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Flat Bottom Pouch Making Machine 01 Laminated
Flat Bottom Pouch Making Machine Model: 650HPF Series

Flat Bottom Pouch Making Machine

Heavy-duty snap-on wall panel converting line designed for high-speed four-side seal and flat-bottom box pouches with robotic side-gusset positioning and automatic timing belt conveyance.

20-130 pcs/min Multi-Layer Laminated Barrier Films, PET/AL/PE, Kraft Paper Laminates
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine 01 Laminated
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine Model: 600HDF Series

High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine

Advanced versatile pouch making line supporting reverse feeding, integrated swing-arm unwinding, and EPC automatic web guiding for three-side seal and stand-up zipper pouches.

20-220 pcs/min BOPP, PET, CPP, PE, Nylon, Aluminum Foil, Multi-Layer Laminates
High-Speed Three Side Seal Pouch Making Machine 01 Laminated
High-Speed Three Side Seal Pouch Making Machine Model: 600HSF Series

High-Speed Three Side Seal Pouch Making Machine

Dedicated ultra-high-speed converting platform capable of up to 300 pouches/min with double swing-arm tension control, anti-scratch reverse gantry feeding and low-noise cutting.

20-300 pcs/min PA/PE, PET/PE, PET/AL/PE, Paper/PE, Retort Barrier Laminates
Customized Converting Sizing

Configure Your ZPB+SD Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
