Home Machines 01 Laminated Pouches INLL
Zipper Bag Making Machines

High-speed Zipper Profile Extruder

Model: INLL Zipper Bag Making Machines · Converting Platform 20-80M/min strokes/min
High-speed Zipper Profile Extruder 01 Laminated Line
Cycle Speed 20-80M/min strokes/min
Drive System Multi-Axis Servo
Quality Test 100% FAT
Warranty
12 Months Direct Factory Warranty
Lead Time
30 - 45 Days
Standards
CE & ISO 9001
Converting Machine Lineup

High-speed Zipper Profile Extruder

Model: INLL Zipper Bag Making Machines
The High-Speed Zipper Profile Extruder produces zipper profiles with precision and efficiency, using a cooling water tank for consistent quality. Designed for high-speed, high-volume production, it includes optional add-ons for enhanced functionality.
Max Design Speed 20-80M/min strokes/min
Applicable Materials LDPE, LLDPE, Laminated Barrier Films, Zipper Profiles
Primary Web Dimension Standard Converting Range
Drive & Tension Control Synchronized Tension Control
Direct Channels:
CE Certified CE Certified
ISO 9001 ISO 9001
System Architecture & Features

Standard Features & Specialized Systems

Interactive breakdown of mechanical modules, automation controls, and special tooling engineered into the INLL.

Synchronized Feeding and cutting speed

Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.

German "Sick" photocell registration

Reliable and accurate print registration and positioning

LCD touch panel

Easily operable human-computer interface to access parameter changes and production monitoring

Socket type IC circuit control

Automated control system can be easily replaced by socket plugin.

Malfunction alarm / stop

Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)

Customized Tooling & Stations

Available Optional Devices & Add-on Stations

Modular accessories, punch tooling, folding units, and seal bars available for High-speed Zipper Profile Extruder.

Inquire About Custom Tooling

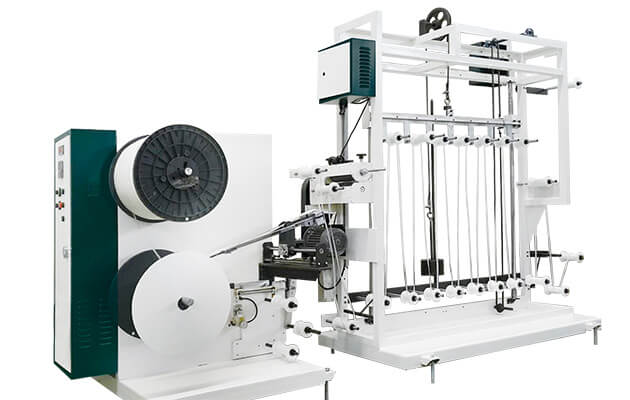

Automatic profile rewinder Zoom

Automatic profile rewinder

Zipper profiles are automatically closed and rewinded into bobbin form.

Add to Proposal

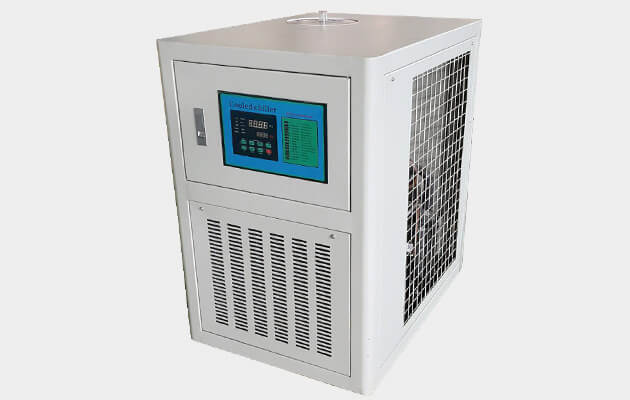

Chiller Zoom

Chiller

Chiller is required for controlling cool water for zipper profile extrusion.

Add to Proposal
Engineering Datasheet

Model Variants & Technical Specifications

Compare model dimensions, stroke cycle capacities, and film web thickness for INLL.

Request Custom Specification
Available Model Variant Baselines (1 Line Configurations)
45INLL Variant 1
Screw diameter: 45mm
heater: 17kw
Capacity: 20-80M/min
Comprehensive Lineup Specification Matrix
Model Designation Bag Width Range Bag Length Range Film Thickness Speed / Output Capacity
45INLL Standard Width Standard Length 0.012 - 0.15 mm 20-80M/min
Operational & Environmental Baseline Specifications
Machine Title High-speed Zipper Profile Extruder
Model Designation INLL
Converting Category Zipper Bag Making Machines
Drive System Industrial Servo Motor Feed & Microprocessor Control
Registration Control Precision Photocell Mark Tracking (German Sick / Banner)
Control Interface Color LCD Touchscreen HMI with Memory Presets
Standard Electrical 380V / 220V 3-Phase 50/60Hz (Custom Available)
Production Speed 20-80M/min strokes/min
Standard Model Lineups 45INLL
Industrial Applications

Target Converting Sectors

Recommended end-market packaging categories engineered for High-speed Zipper Profile Extruder.

View All Industries
Food Resealable Storage
Fresh Produce & Deli Packaging
Pharmaceutical Pouch Packaging
Garment Slider Zipper Bags
Related Machinery

Alternative Converting Lines

Compare All Lineups
Flat Bottom Pouch Making Machine 01 Laminated
Flat Bottom Pouch Making Machine Model: 650HPF Series

Flat Bottom Pouch Making Machine

Heavy-duty snap-on wall panel converting line designed for high-speed four-side seal and flat-bottom box pouches with robotic side-gusset positioning and automatic timing belt conveyance.

20-130 pcs/min Multi-Layer Laminated Barrier Films, PET/AL/PE, Kraft Paper Laminates
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine 01 Laminated
High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine Model: 600HDF Series

High-Speed Three Side Seal & Stand-Up Zipper Pouch Making Machine

Advanced versatile pouch making line supporting reverse feeding, integrated swing-arm unwinding, and EPC automatic web guiding for three-side seal and stand-up zipper pouches.

20-220 pcs/min BOPP, PET, CPP, PE, Nylon, Aluminum Foil, Multi-Layer Laminates
High-Speed Three Side Seal Pouch Making Machine 01 Laminated
High-Speed Three Side Seal Pouch Making Machine Model: 600HSF Series

High-Speed Three Side Seal Pouch Making Machine

Dedicated ultra-high-speed converting platform capable of up to 300 pouches/min with double swing-arm tension control, anti-scratch reverse gantry feeding and low-noise cutting.

20-300 pcs/min PA/PE, PET/PE, PET/AL/PE, Paper/PE, Retort Barrier Laminates
Customized Converting Sizing

Configure Your INLL Line

Send your physical bag samples, film web specifications, or CAD packaging drawings to our application laboratory. We will calculate your exact cycle output and provide customized line layout drawings.

What You Receive with Your Proposal:

Sealing dwell time & burst pressure lab report
Guaranteed mechanical speed and daily bag output
Plant floor space CAD drawing and power distribution plan
Itemized quotation including tooling, spare kits and FAT testing
